BTTrade DDI Slot Configuration

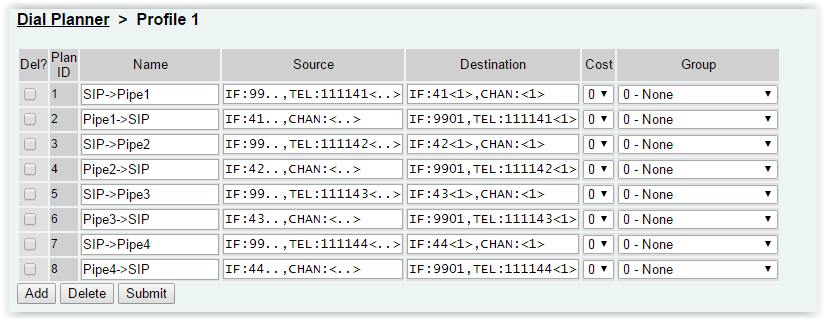

The dial plan of the pre-configuration has setup the following rules:

TPO SIP request to/from gateway TDM Port 1

•SIP->Pipe1 is the rule for SIP incoming request to forward to TDM port 1

•Pipe1->SIP is the rule for TDM incoming request to forward to SIP session with Url sip:111141XX@TPO IP address; XX is the number of the channel.

Example to reach TDM Port 1 channel 1:

TPO must send to the SIP URI sip:11114101 to reach TDM port 1 time slot 01

TPO SIP request to/from gateway TDM Port 2

•SIP->Pipe2 is the rule for SIP incoming request to forward to TDM port 2

•Pipe2->SIP is the rule for TDM incoming request to forward to SIP session with Url sip:111142XX@TPO; XX is the number of the channel.

Example to reach Port 2 TDM channel 1:

TPO must send to the SIP URI sip:11114201 to reach TDM port 2 time slot 01

TPO SIP request to/from gateway TDM Port 3

•SIP->Pipe3 is the rule for SIP incoming request to forward to TDM port 3

•Pipe3->SIP is the rule for TDM incoming request to forward to SIP session with Url sip:111143XX@TPO; XX is the number of the channel.

Example to reach Port 3 TDM channel 1:

TPO must send to the SIP URI sip:11114301 to reach TDM port 3 time slot 01

TPO SIPrequest to/from gateway TDM Port 4

•SIP->Pipe4 is the rule for SIP incoming request to forward to TDM port 4

•Pipe4->SIP is the rule for TDM incoming request to forward to SIP session with Url sip:111144XX@TPO; XX is the number of the channel.

Example to reach Port 4 TDM channel 1:

TPO must send to the SIP URI sip:11114401 to reach TDM port 4 time slot 01

DDI Slot properties configuration (TPO Configuration)

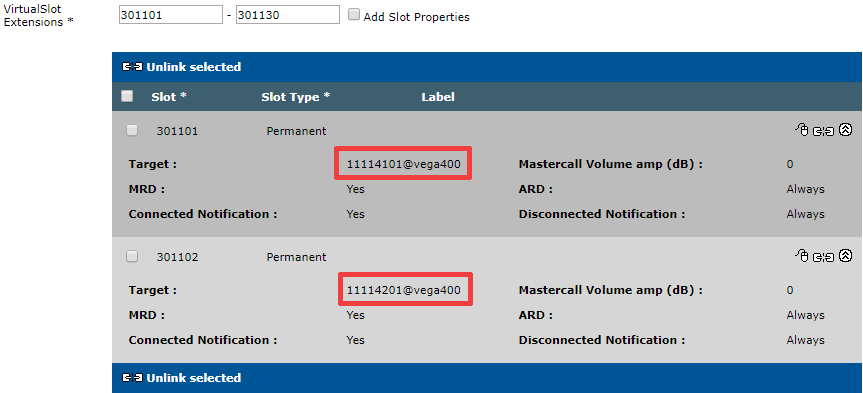

The DDI slot must be set in the following way:

 -  vega400 is the configured PLAD Group name which represent the IP address of Vega 400

 - Slot 301101 is configured to reach TDM port 1 time slot 2

 - Slot 301102 is configured to reach TDM port 2 time slot 2

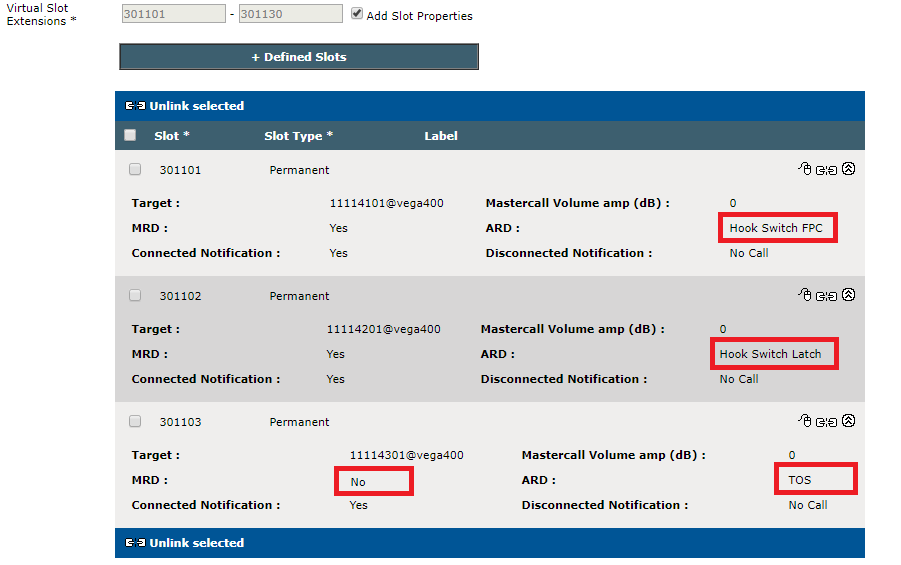

Additional properties

oHook Switch FPC: system generates a pulse when a trader connects to the slot while no other traders are connected to the same slot. Clear all connected traders if the last Far Party participant clear the call.

oHook Switch Latch: system generates a pulse when a trader connects to the slot while no other traders are connected to the same slot. Keeps traders connected even if the last Far Party participant clear the call.

oTOS: system doesn't generate pulse depending on turret user connections. Set the MRD property to No.
