Database Replication

Introduction

This sections describes main operation about Replication.

Replication can be installed on 1 to 6 servers.

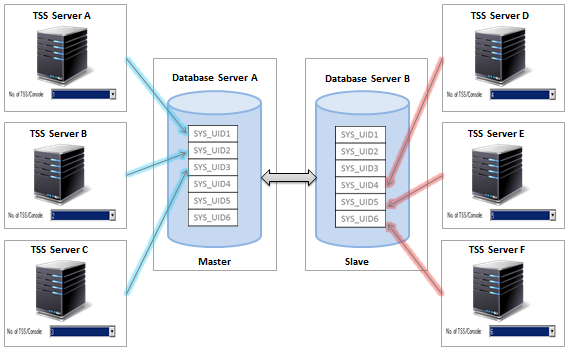

clip_tss0220

Depending of number of instance implied in replication range of table SYS_UID will be initialized with base identifiers. Once range is initialized it is not possible to modify it later.

Numbers of TSS servers	Minimum > Maximum
1 (1x1)	1: 00000 > zzzzz (SYS_UID1)
2 (2x1 or 1x2)	1: 00000 > Uzzzz (SYS_UID1) 2: V0000 > zzzzz (SYS_UID2)
3 (3x1)	1: 00000 > Kzzzz (SYS_UID1) 2: L0000 > fzzzz (SYS_UID2) 3: g0000 > zzzzz (SYS_UID3)
4 (4x1 or 2x2)	1: 00000 > Ezzzz (SYS_UID1) 2: F0000 > Tzzzz (SYS_UID2) 3: U0000 > izzzz (SYS_UID3) 4: j0000 > zzzzz (SYS_UID4)
5 (5x1)	1: 00000 > Bzzzz (SYS_UID1) 2: C0000 > Nzzzz (SYS_UID2) 3: O0000 > Zzzzz (SYS_UID3) 4: a0000 > lzzzz (SYS_UID4) 5: m0000 > zzzzz (SYS_UID5)
6 (6x1 or 3x2)	1: 00000 > 9zzzz (SYS_UID1) 2: A0000 > Jzzzz (SYS_UID2) 3: K0000 > Tzzzz (SYS_UID3) 4: U0000 > dzzzz (SYS_UID4) 5: e0000 > nzzzz (SYS_UID5) 6: o0000 > zzzzz (SYS_UID6)

SQL Engine

Replication on :

•Microsoft SQL Server

•MySQL

Table Of Content

•Installing the TSS on an existing server

•Prerequisites

•Install Operating System

•Install Database Management System

•Install new TSS/Console

•Upgrade TSS/Console

•IptradeNet/TSS/Console: Quick Start Guide

•Uninstall Applications

•Database Maintenance

•Database Replication

•Troubleshoot


		Boot settings are synchronized between the two servers (and thus made available for devices) every 60 minutes. When a change is performed on one of the two TSS servers, either wait for the automatic synchronization to occur or press the Rebuild boot settings link in the devices list.
