Dispatchers

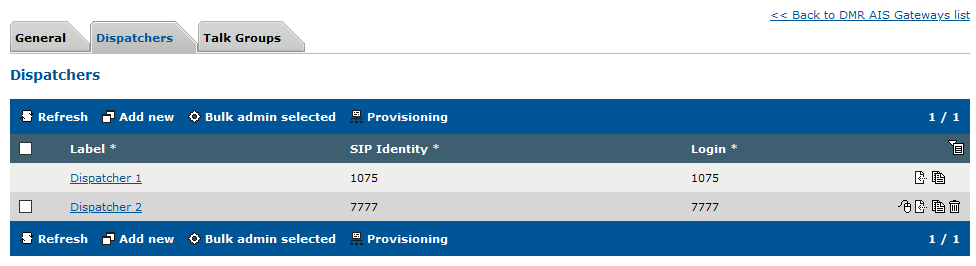

On an already created DMR AIS Gateway, dispatchers are configured under the "Dispatchers" tab.

A Dispatcher is the identity that the TPO uses to connect to the DMR radio system.

Multiple dispatchers can be configured in a DMR AIS Gateway.

Dispatcher identities are linked to different places. A place can only use one dispatcher identity. A dispatcher identity can be linked to multiple places.

All turret users connected to the same TPO place will have the same dispatcher identity in the radio system, when making a call using this place.

If a radio user on the field wants to make an individual call (point-to-point) with turret users, the radio user needs to dial the dispatcher identity linked to the place.

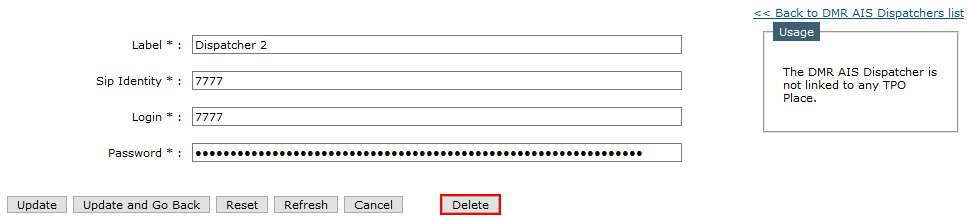

Configuration

•Label : The label of the dispatcher. This label is used in the DMR AIS SIP signaling between the TPO and the radio system.

•Sip Identity : The identity of the dispatcher. This numeric value must match the configuration in the DMR AIS radio node, otherwise the registration process will fail.

•Login : The login used in case the SIP digest authentication is enabled. In most cases, it's the same value than the SIP Identity.

•Password : The password for the SIP digest authentication.
