Product Overview

This gateway connects analogue private wires, audio sources and the PSTN to SIP networks.

Features:

Supports four analogue interfaces: GenGen, Audio, FXS, FXO


- Up to 16 simultaneous calls

- Supports SIP, T.38 fax and modems

- Web GUI for configuration and troubleshooting

- Supports up to 16 analogue ports on 16 physical interfaces

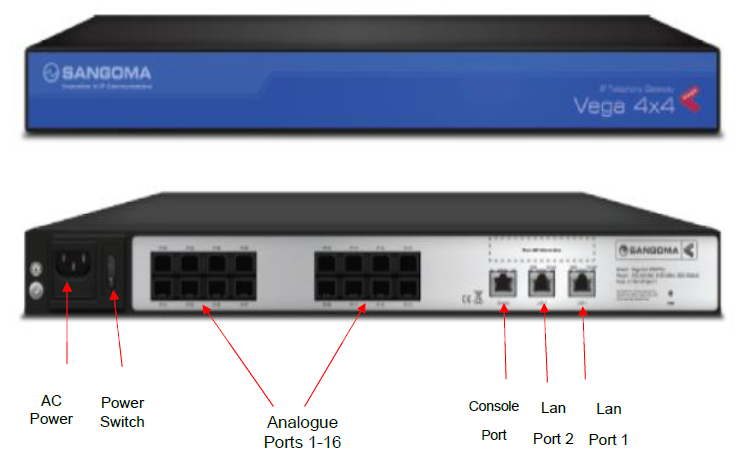

Here is a description of Front and Back panel of the Vega 4x4.

Warning: If both LAN interfaces, LAN 1 and LAN 2 are to be used, the interfaces must be on separate subnets.
