TPO Place

A configured gateway doesn't work by itself, it must have TPO Places using its lines.

To be able to use a SIP Private Wire place and give user access to it, you must also create an unregistered line in the cluster.

The actual extension you use for it has no impact on the functionality, you just have to make sure it is unique.

TPO Place configuration

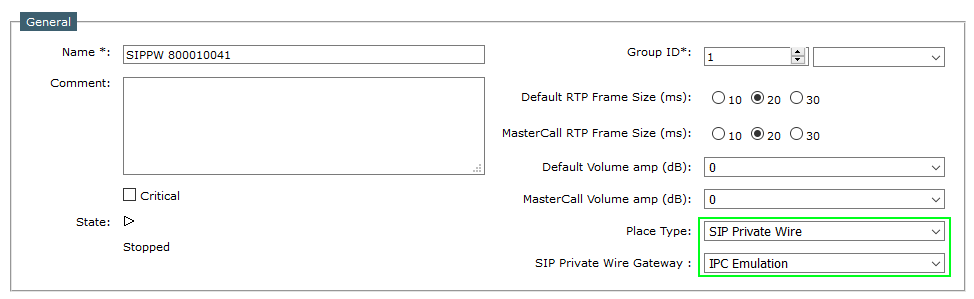

The fields in a SIP Private Wire place are very similar to a RingdownDynamic place, the only difference being that you have to select which gateway to use.

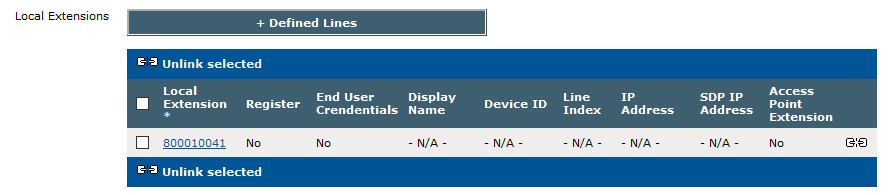

Don't forget to link the extension you created for it in the cluster.

Slots configuration

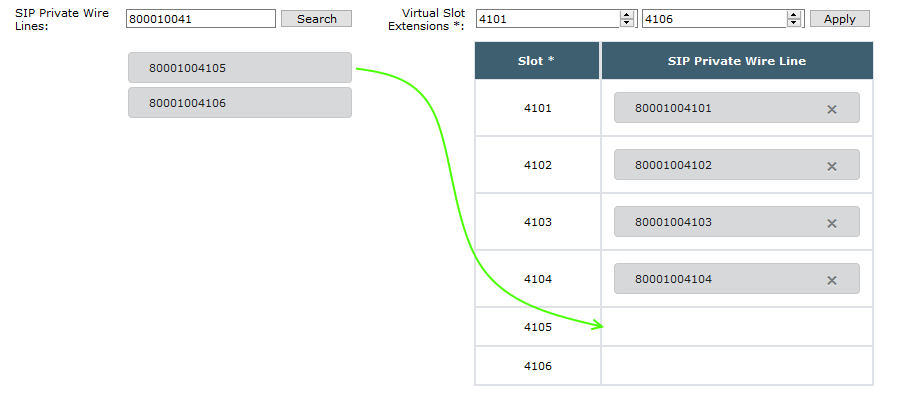

Slots in a SIP Private Wire place are quite different from other types, all the configuration for them is done in the Private Wire Lines and you just drag their labels into the place slots.

Please note that to get the list of available lines you must first press search, optionally entering part of the label to find the exact line you're looking for.

Do not leave unused slots: the behavior of those slots is undefined and using them could lead to the place locking up.
