Network Topology
Network Topology |
|
| Trading and C&C > Turret Proxy To Open communication (TPO) > DDI Sharing > DDI Lines & Radio Systems > Multicast based radio systems > Configure |

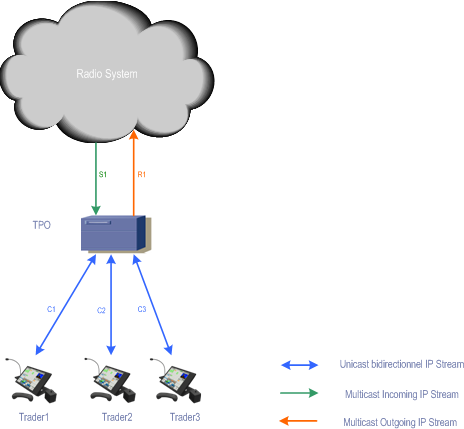

The figure below describes the network topology.
•TPO has a DDI place and Static IP DDI slot configured: The place listen incoming multicast RTP packets on 239.0.0.4:2570 The place can send multicast RTP packets on 239.0.0.6:2580 (R1) TPO line extension is 7500 •Multicast sources: Radio System provider sends multicast RTP stream to 239.0.0.4:2570 (S1) •Turrets Trader1, Trader2 and Trader3 have a DDI slot shortcut to the TPO line 7500. Trader1 is able to connect to the TPO line 7500 (Call C1). He is considered as connected trader. It is the same behavior for Trader2 and Trader3. |
