Dual stream mode

This mode is a particular mode of redundancy. When this mode is enabled, both the primary and the secondary recorder will receive the recording stream.

To enable dual stream mode, sety the following key to "true" :

Location: Terminal Boot Settings, Terminal Profile Settings, boot, profile
Recorder	Redundancy dual stream mode truefalse Key: profile.setting.recording.dualstreammode Description: Enable/disable the dual stream mode on recording redundancy. When this mode is activated, the recording stream is also sent to the secondary recorder server.

LIMITATION WARNING:

•It is the recording systems responsibility to consolidate the view in replay application in order to avoid duplicate calls appearance.

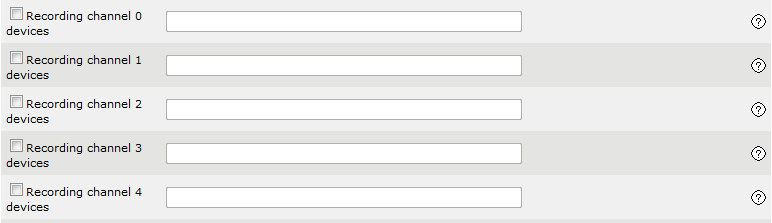

•On the turret in mixed mode, there are only 5 recording channels available (channel 0 to channel 4).

Note: On turret with XMA2 in mixed mode, there are 7 recording channels available (channel 0 to channel 6).

This mode of redundancy is available for ASC, RedBox and Verba recorder system.

It's matter to correctly configured turret on recorders. For instance:

•profile.setting.recording.dualstreammode = true

•application.recorder.activerecording = Redbox01;Redbox02

in this case turret has to be correctly configured on Redbox01 and Redbox02.

Each stream will be recorded on both recorders.
