TroubleShooting

Trouble Shooting

The SBC is normally set to send SIP option pings in the STX proxy set it defaults to 60secomds BTTrade recommends to reduce this to 300 seconds in production.

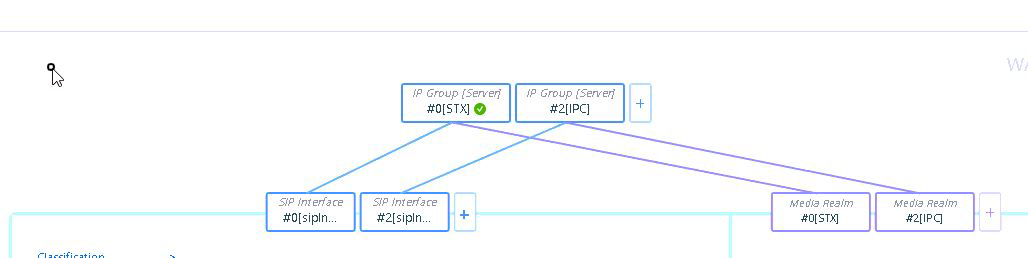

If the configuration is good SIP OPTIONS will be returned by the LSE and the interface will be green in the topology view.

If the interface is not working the SBC log messages or the syslog viewer tool available on BTExtranet  can be used to look for more detailed information.

Both will report “Transport Error” if it believes that TLS is not established.

local0.notice [S=153] [SID=1ad507:21:168] AcSIPDialog(#14009)::TransactionFail - ClientTransaction(#27029) failed sending message with CSeq 1 OPTIONS, the cause is Transport Error

A guide on how to use Syslog Viewer is included in TSS help use the following link to access it SBC TroubleShooting

Example Call Flows of working STX Lines

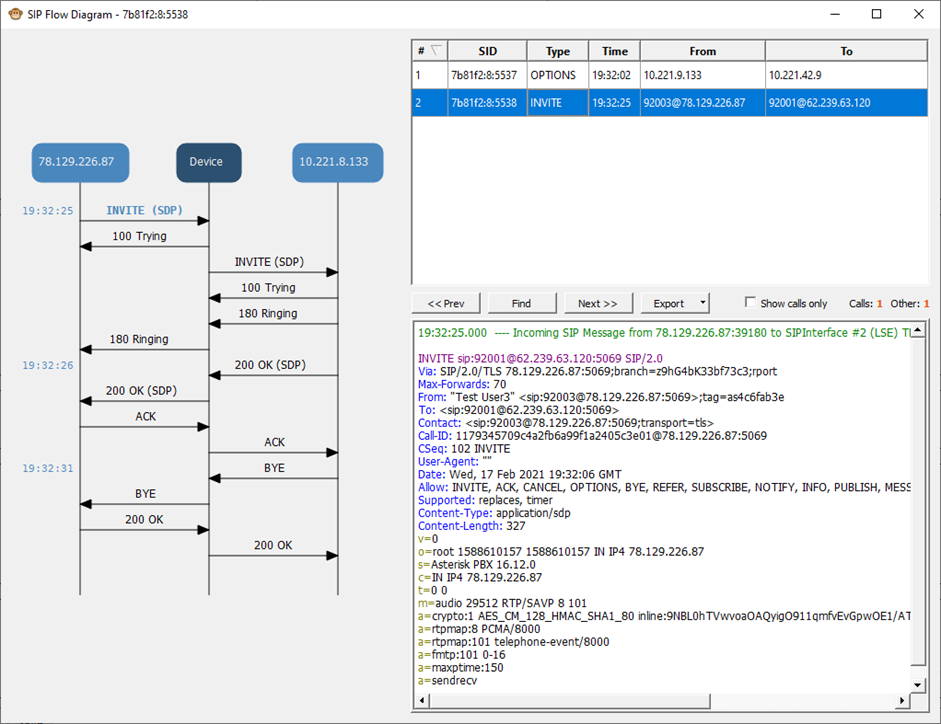

LSE to BT trading platform Voice Call

BT trading platform to LSE Voice Call

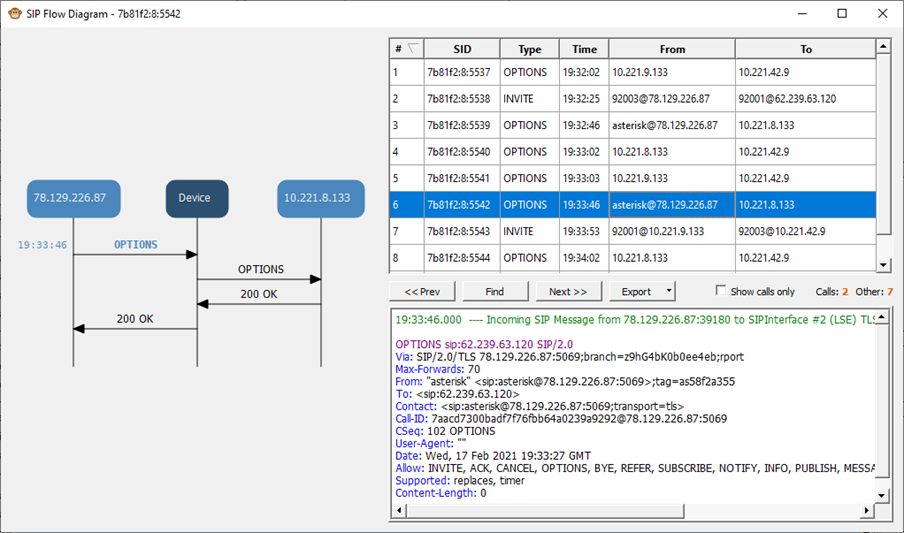

LSE to BT trading platform SIP Options
