Overview

After performing the basic Windows 2019 Server installation, additional steps need to be done to finish installation properly.

Configure this local server

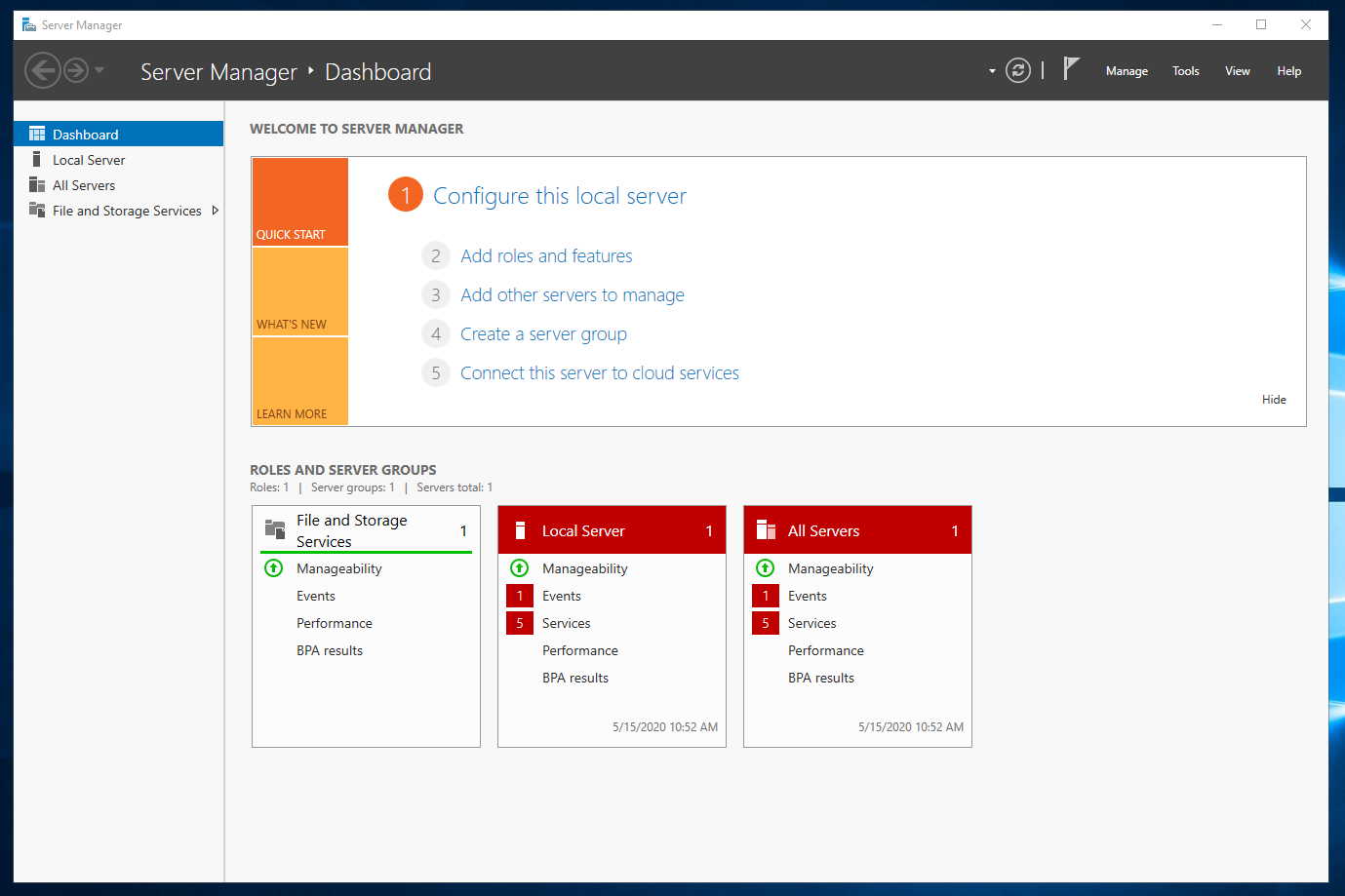

•Click on link Configure this local server.

Windows Server 2019 PIC01



Provide Computer name and domain

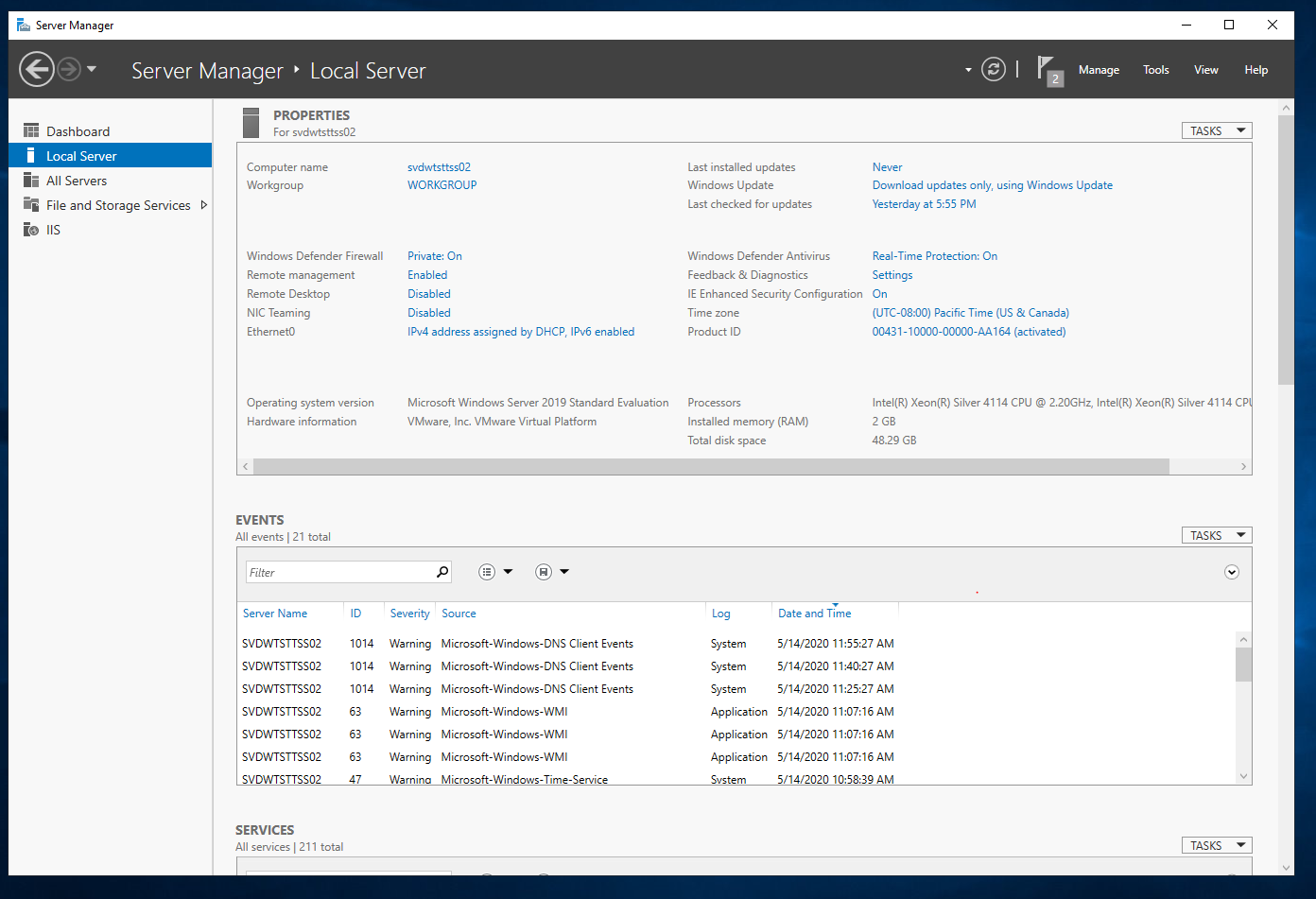

•Press on "link next" to Computer name.





Windows Server 2019 PIC211

•Press "Change..." button.



003



•Set computer name, domain name and press OK button.



004



•Computer needs to be restarted. Press "OK" button.



•Press "Restart" Now button.

Set time zone

•Press on "link" next to Time zone.

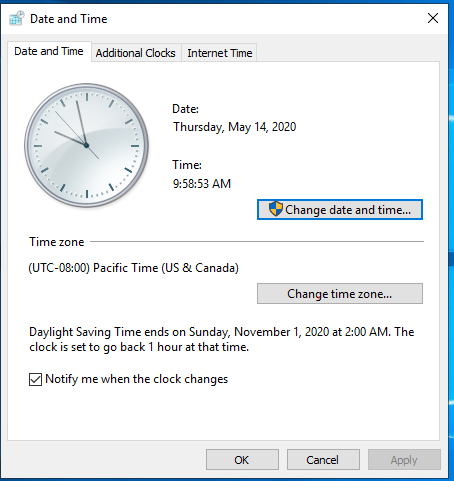

•Press on "Change time zone..." button.


Windows Server 2019 PIC22

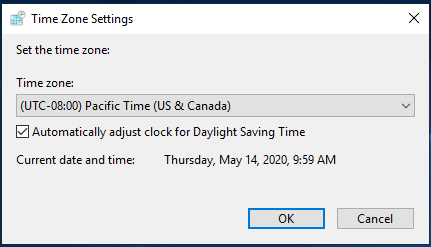

•Set time zone and press "OK" button.


Windows Server 2019 PIC23


•Press "Change date and time..." button.

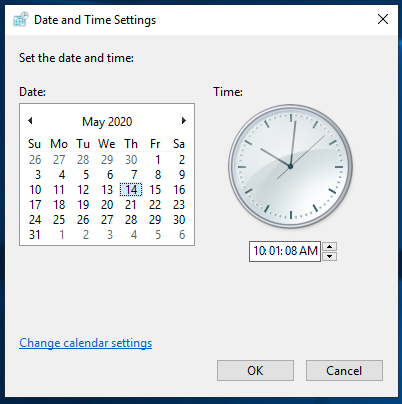

•Set date and time and press "OK" button.


Windows Server 2019 PIC24



Enable automatic updating and feedback

Leave the automatic update as turned off.

Add roles and features

•Click on link Add roles and features.

•Press "Next" button.



008



•Set option Role-based or feature-based installation.

•Press "Next" button.



009

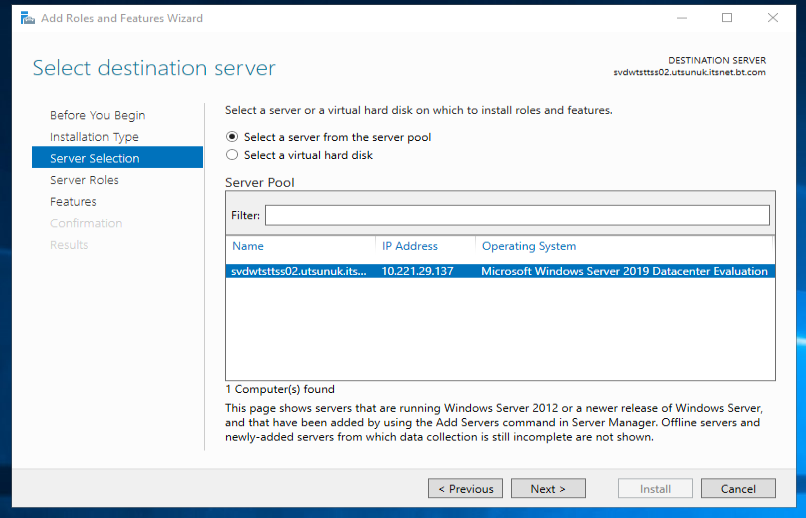

•Set option Select a server from the server pool.

•Select a current server.

•Press "Next" button.



Windows Server 2019 PIC04



•Check options:

oWeb Server (IIS)

•Press "Next" button.



011

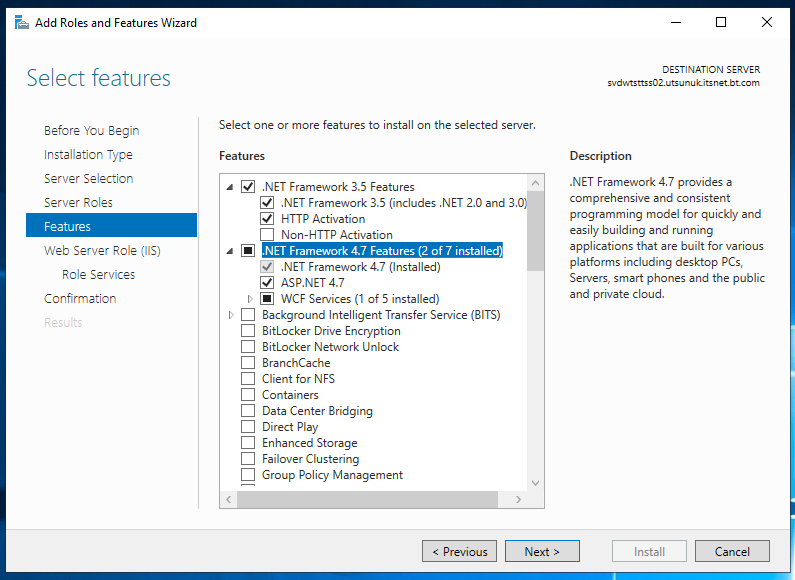

•Check options:

o.NET Framework 3.5 Features (with HTTP Activation)

o.NET Framework 4.7 Features (with ASP .NET 4.7)

oRemote Assistance

•Press "Next" button.



Windows Server 2019 PIC25



•Press "Next" button.



013



•Check options:

oCommon HTTP feature (except WebDAV Publishing)

oHealth and Diagnostics (except Custom Logging, ODBC Logging, Tracing)

oPerformance

oSecurity (except Centralized SSL Certificate Support)

oFTP Server (except FTP Extensibility)

oManagement Tools (except Management Service)

•Press "Next" button.



014



•Check options Restart the destination server automatically if required.

•Press "Yes" button.



015

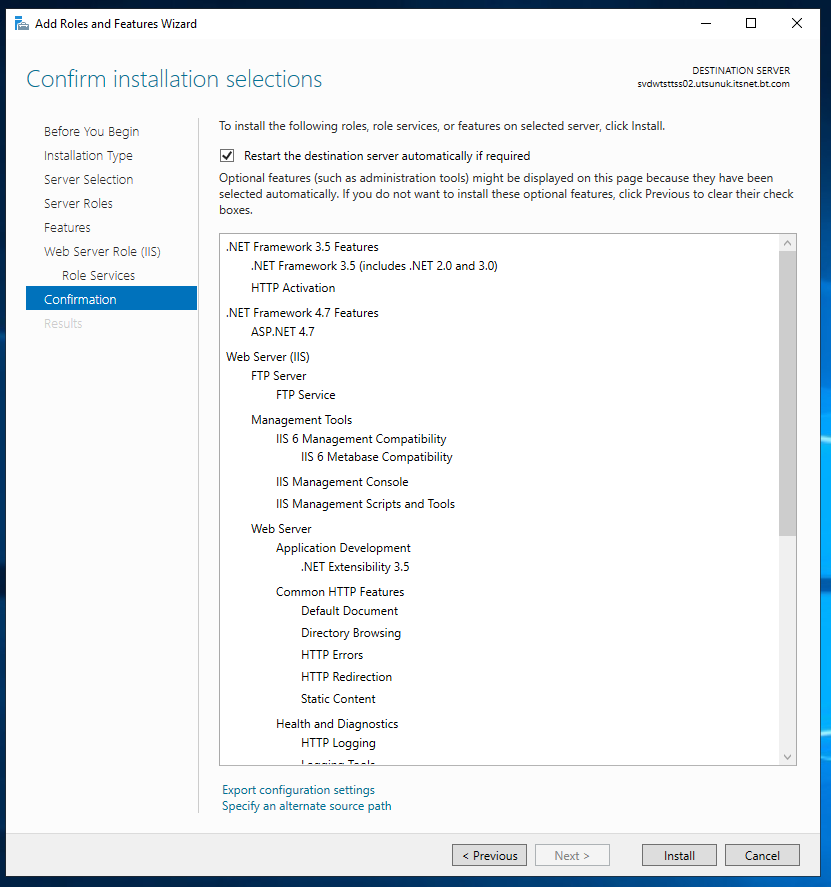

•Press "Install" button.

Windows Server 2019 PIC29

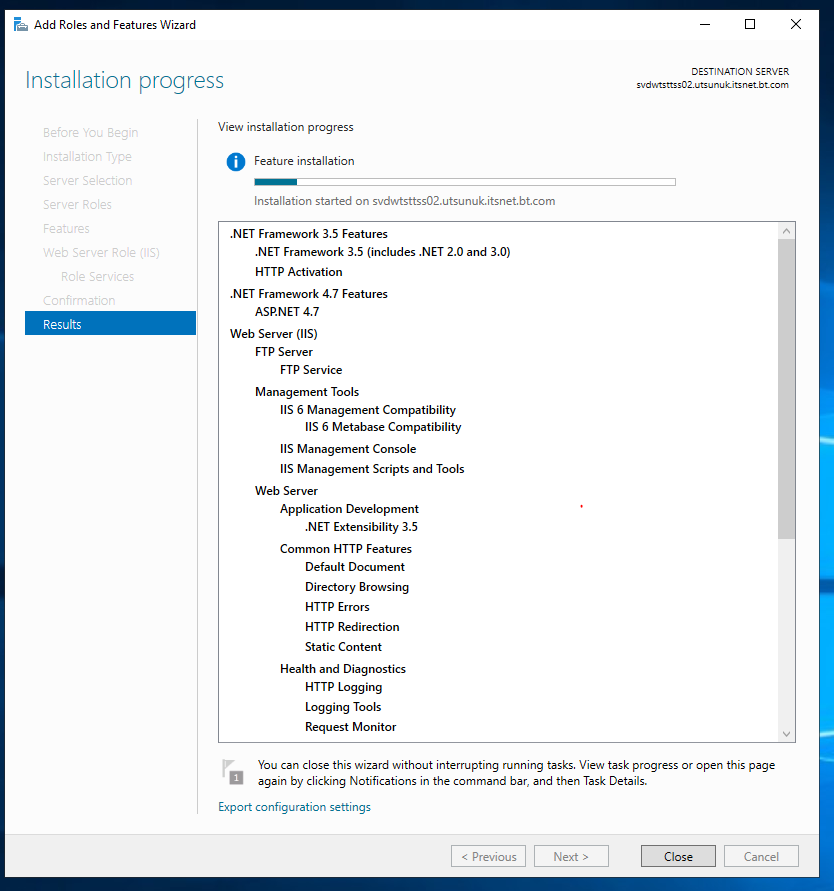

•Once installation is finished press "Close" button.



Windows Server 2019 PIC210



Enable .NET 2.0

•Click on link "Add roles and features".

•Press "Next" button.



019



•Set option Role-based or feature-based installation.

•Press "Next" button.



020



•Set option Select a server from the server pool.

•Select a current server.

•Press "Next" button.



021

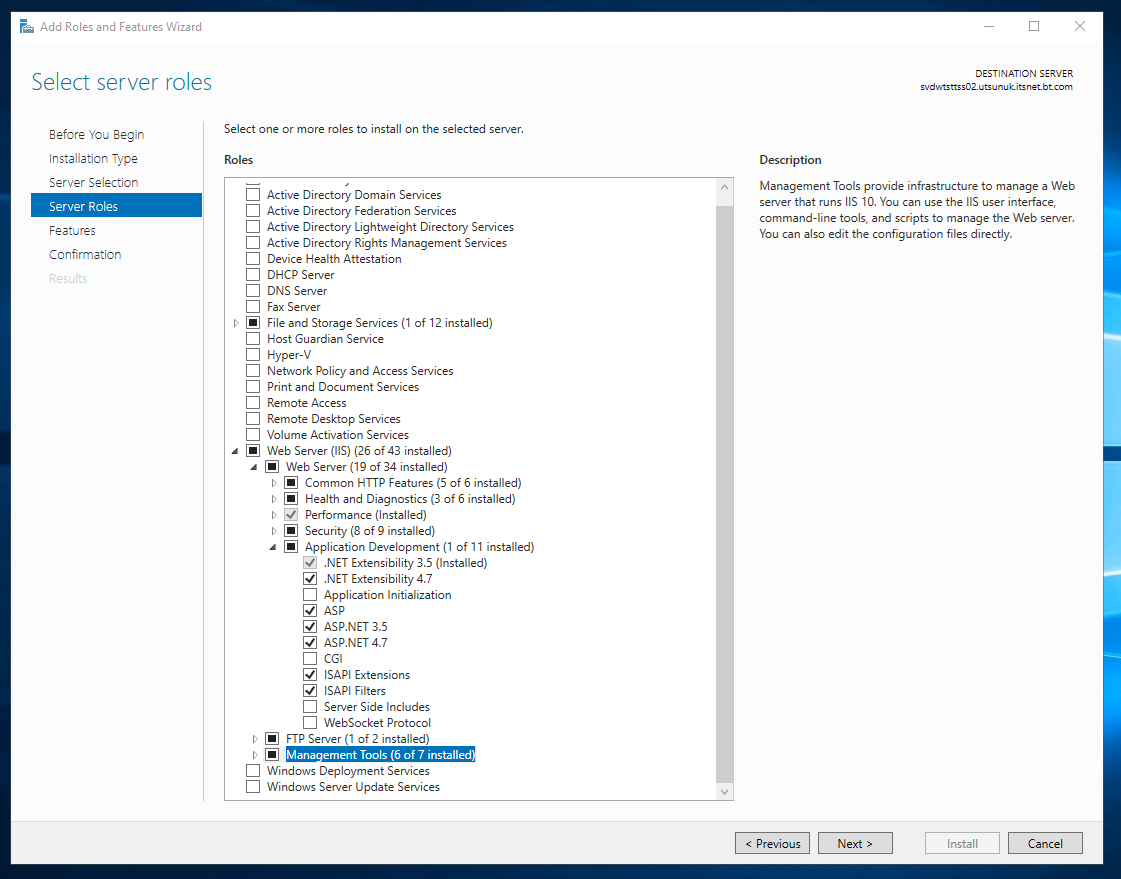

•Deploy node Web Server (IIS) and select following component:

oWeb Server > Application Developpment > ASP

oWeb Server > Application Developpment > ASP.NET 3.5

oWeb Server > Application Developpment > ASP.NET 4.7

•Press "Next" button.



Windows Server 2019 PIC26

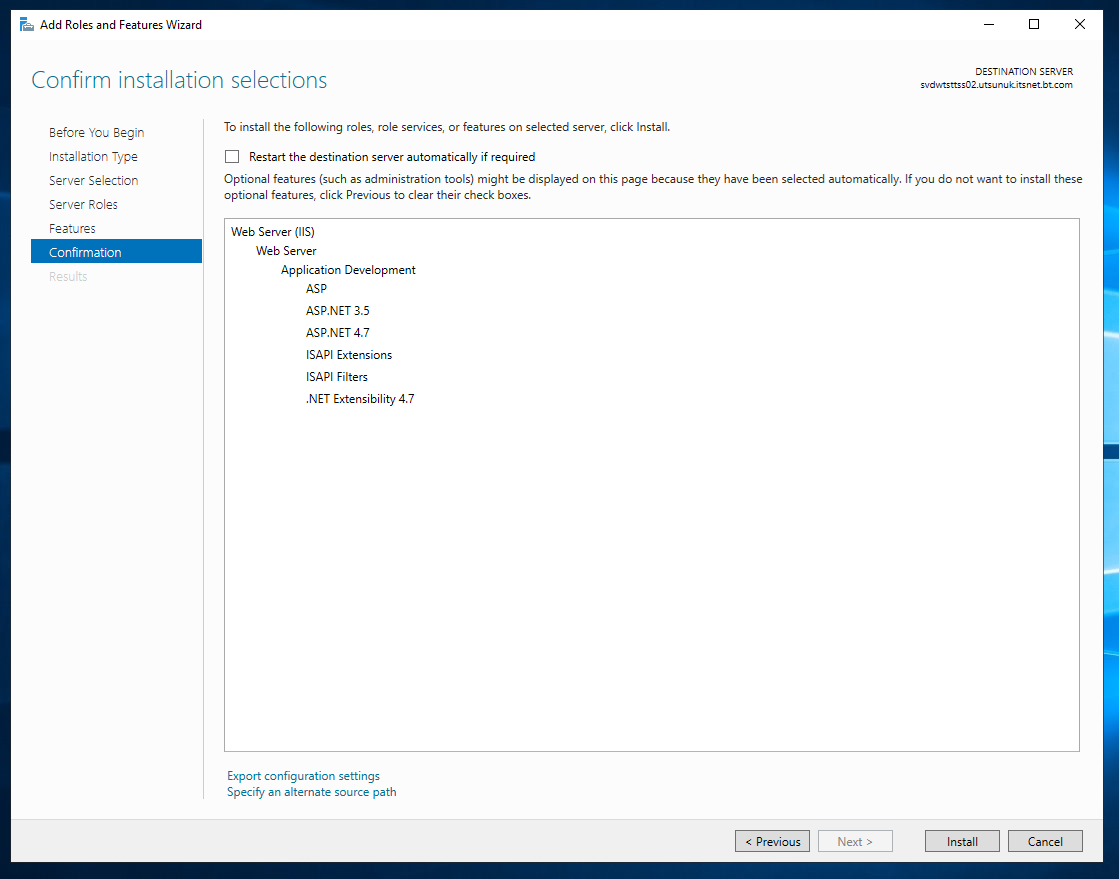

•Press "Install" button.



Windows Server 2019 PIC27

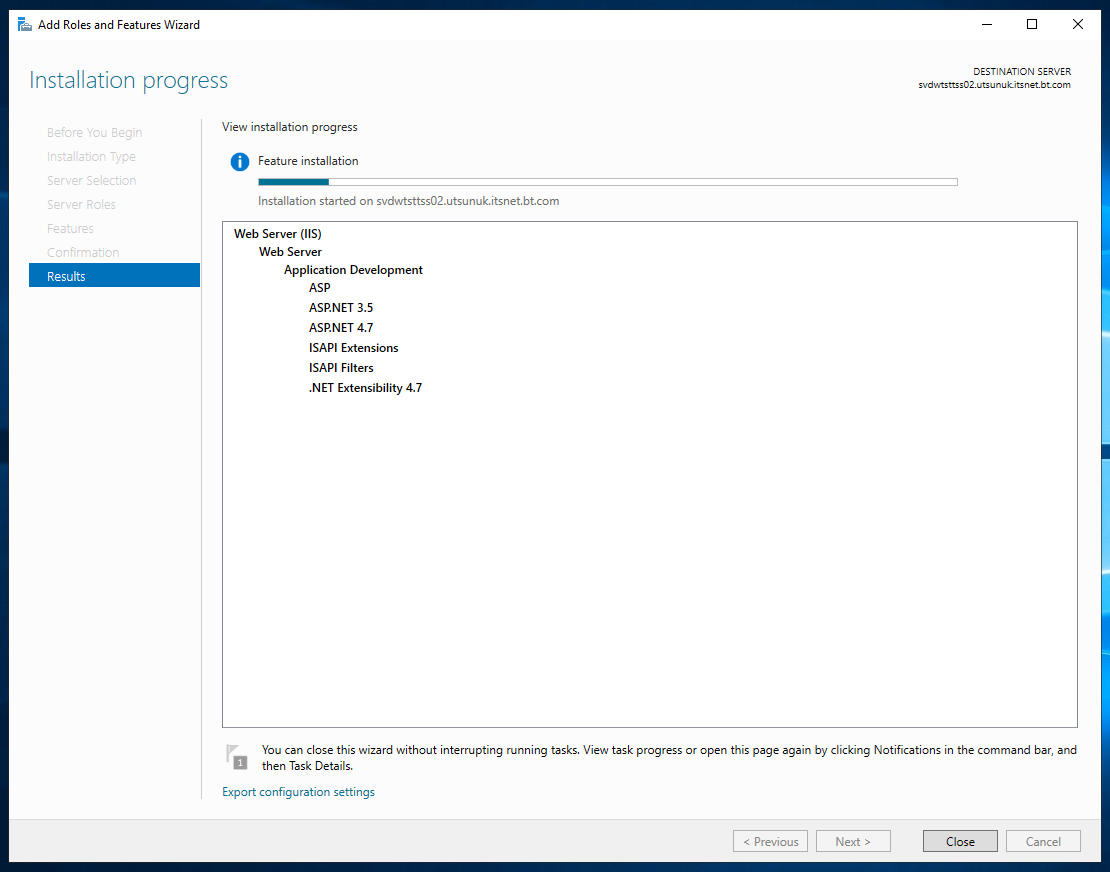

•Press "Close" button.



Windows Server 2019 PIC28

Configure Windows Firewall

•Press button "Tools > Windows Defender Firewall with Advanced Security".



Windows Server 2019 PIC220

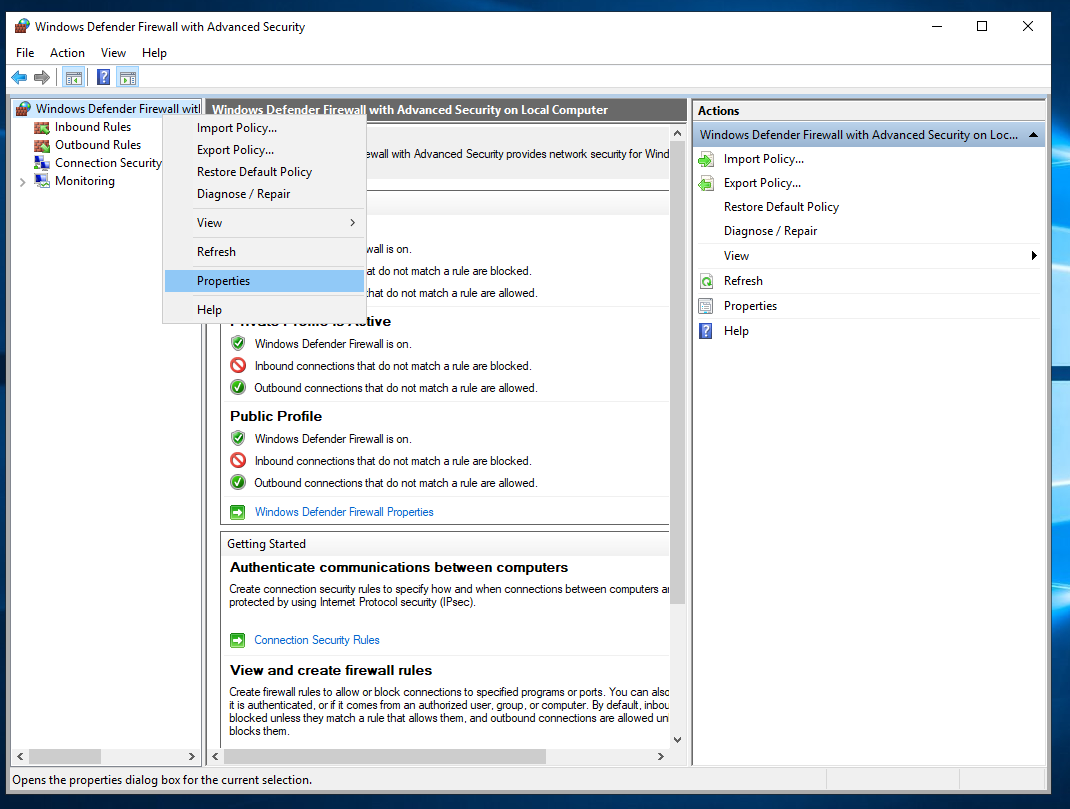

•Right click on the "Windows Defender Firewall with Advanced Security on Local Computer".

•Select "Properties".



Windows Server 2019 PIC218

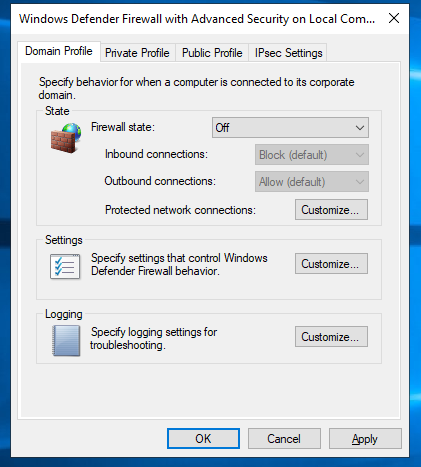

•Select tab Domain Profile.

•Set Firewall state to Off.



Windows Server 2019 PIC215

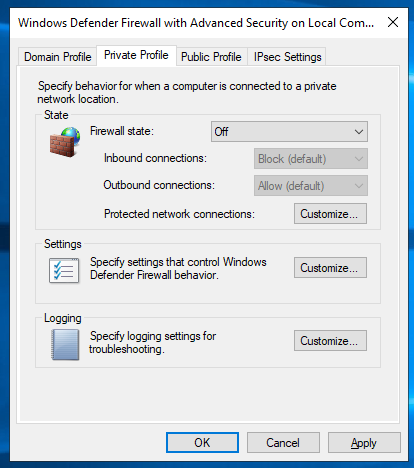

•Select tab Private Profile.

•Set Firewall state to Off.



Windows Server 2019 PIC216



•Select tab Public Profile.

•Set Firewall state to Off.

•Press "OK" button.



031
