Configuring the Call History applet

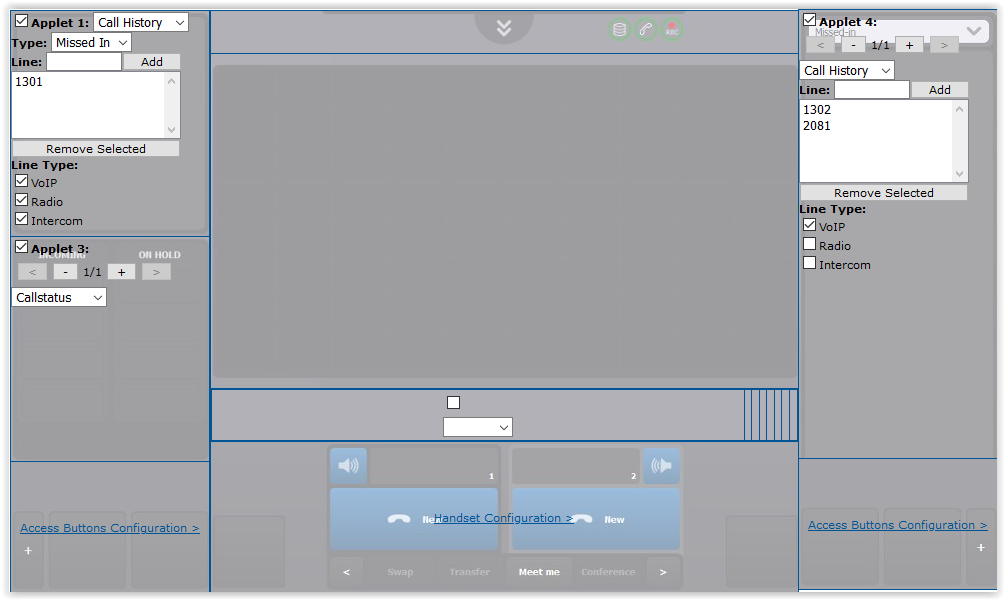

Call History applets can be configured in the Turret Layout section of a user or shared profile:

HistoryApplet_TurretLayoutConfig

The following filters can be applied through the Turret Layout panel :

•Call log type : Missed-In, Placed, Received or All (except for big applet where the filter is set on the fly)

•Lines

•Line Type : VoIP, Radio and/or Intercom

Location: Terminal Boot Settings, Terminal Profile Settings

Call History

Default Call History big applets type	missed_inreceivedplacedall
Key: profile.setting.applet.history.big.type Description: Defines which call log types are displayed in the Big Call History applets as soon as the user logs in. The type can then be changed using the dedicated drop-down menu by the user. Constraint: missed_in\|received\|placed\|all Related settings: Allow redundant entries (profile.setting.history.allow.redundant.entry) Call History Missed In color (profile.setting.history.missedin.color) Call History Received color (profile.setting.history.received.color) Call History Placed color (profile.setting.history.placed.color) Call History applet type (profile.setting.applet.history.x.type) Call History applet lines list (profile.setting.applet.history.x.lines) Call History applet line type (profile.setting.applet.history.x.linetype) Call history and call handler applets blacklist (profile.setting.applet.history.blacklist)

Location: Terminal Boot Settings, Terminal Profile Settings

Call History

Allow entries overflow on call history applet	truefalse
Key: profile.setting.applet.history.allow.overflow Description: Allow Call history applet to display more call log entries than visible on screen, i.e allow to scroll in call log entries applet. Constraint: true\|false true: Display scrollbar when needed in Call history applet false: Restrict the number of call log entries in the applet to keep them all visible. The applet's bottom viewport may appear truncated once the overflow limit is reached.

Location: Terminal Boot Settings, Terminal Profile Settings

Layout

Font size of history applet grid buttons
Key: profile.setting.applet.history.gridbutton.fontsize Description: The size defined here is the font size of the labels of these buttons when they are not zoomed in (default size). Note that this setting is used only if profile.setting.gridbutton.fontsize is not defined. Constraint: integer value greater than 0, a percentage of the default font size. Related settings: Font size of grid buttons (profile.setting.gridbutton.fontsize) Font size of shortcut panel grid buttons (profile.setting.shortcut.gridbutton.fontsize) Font size of shortcut applet grid buttons (profile.setting.applet.shortcut.gridbutton.fontsize) Font size of history panel grid buttons (profile.setting.history.gridbutton.fontsize) Generic font size of grid buttons (profile.setting.generic.gridbutton.fontsize)

Location: Terminal Boot Settings, Terminal Profile Settings

Layout

Minimum width of history applet grid buttons
Key: profile.setting.applet.history.gridbutton.minwidth Description: Grid buttons are stretched to fit their container's width. So this setting only sets the minimum width (before stretching) of the buttons. Note that this setting is used only if profile.setting.gridbutton.minwidth is not defined. Constraint: Integer greater than 80 defining the size (in pixels) of the grids elements in the user interface. Related settings: Minimum width of grid buttons (profile.setting.gridbutton.minwidth) Font size of history applet grid buttons (profile.setting.applet.history.gridbutton.fontsize) Minimum width of shortcut panel grid buttons (profile.setting.shortcut.gridbutton.minwidth) Minimum width of shortcut applet grid buttons (profile.setting.applet.shortcut.gridbutton.minwidth) Minimum width of history panel grid buttons (profile.setting.history.gridbutton.minwidth) Generic minimum width of grid buttons (profile.setting.generic.gridbutton.minwidth)
