Trading and C&C > Turret Proxy To Open communication (TPO) > DDI Sharing > DDI Timeout Forwarding > DND presence state on no subscribers

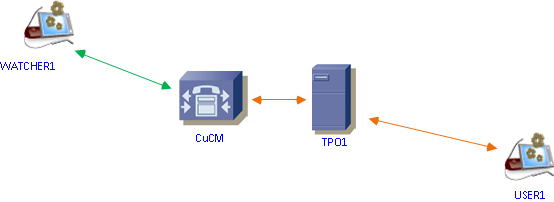

topo











The bullet's color of the presence shortcut on the WATCHER1 is described here:



Phone Status

Unregistered

Registered

On Call

Busy

Forward All

DND

shortcut_grey_dot

shortcut_green_dot

shortcut_orange_dot

shortcut_red_dot

shortcut_green_dot

shortcut_red_dot









No trader registered on the DDI line

Initial situation

A DDI place (extension 1000) is properly configured and started on a TPO.

One user USER1 is configured on the TSS Console, and has the DDI line (matching the DDI place above) in his user profile. User1 is logged off.

Another user WATCHER1 is configured on the TSS Console, and has a Primary line in his profile. This user has a presence shortcut to the DDI extension (1000). WATCHER1 is logged off.



Scenario

1.WATCHER1 is logged–in

2.Presence shortcut shows DND state (red bullet)







One user registered on the DDI line

Initial situation

A DDI place (extension 1000) is properly configured and started on a TPO.

One user USER1 is configured on the TSS Console, and has the DDI line (matching the DDI place above) in his user profile. User1 is logged off.

Another user WATCHER1 is configured on the TSS Console, and has a Primary line in his profile. This user has a presence shortcut to the DDI extension (1000). WATCHER1 is logged off.



Scenario

1.WATCHER1 is logged–in

2.WATCHER1’s presence shortcut shows a DND state (red bullet)

3.User1 is logged-in

4.WATCHER1’s presence shortcut shows Available state







Call on the DDI line

Initial situation

A DDI place (extension 1000) is properly configured and started on a TPO.

One user USER1 is configured on the TSS Console, and has the DDI line (matching the DDI place above) in his user profile.  User1 is logged-on.

Another user WATCHER1 is configured on the TSS Console, and has a Primary line in his profile. This user has a presence shortcut to the DDI extension (1000). WATCHER1 is logged-on. WATCHER1’s presence shortcut shows Available state.

An IP Phone (8701) is registered



Scenario

1.User1 makes a call to the IP phone.

2.WATCHER1’s presence shortcut shows Ringing state.

3.IP phone answers the call.

4.WATCHER1’s presence shortcut shows On-Cal (orange bullet) state.

5.IP phone terminates the call.

6.WATCHER1’s presence shortcut shows Available state
