TPOs

The TPOs page contains a searchable list of TPO that Assure is aware of, and includes details of the services that are running on each one. Drilling down into a TPO, by clicking on its link, displays more detailed information.

TPO Page

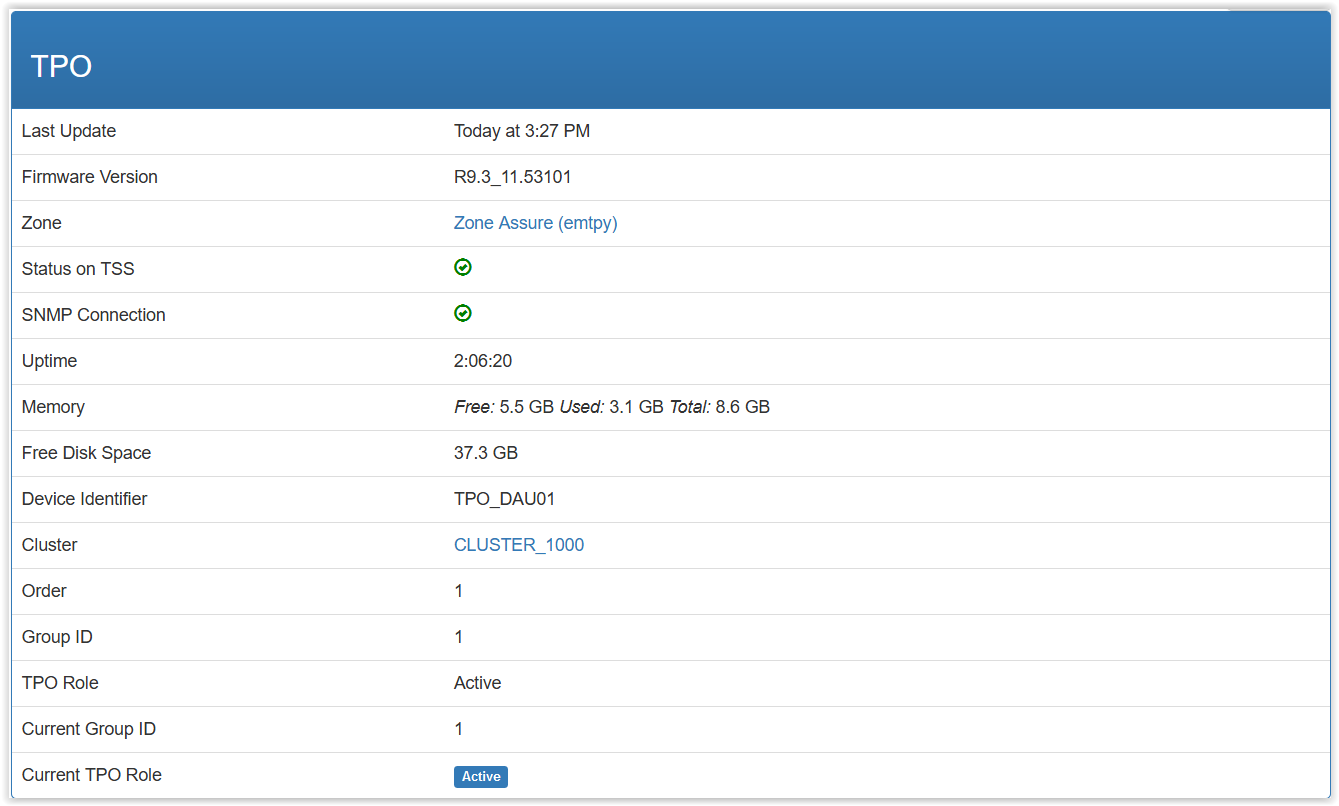

In the TPO page, you will find details about the TPO as seen below. The TPO information is updated regularly over SNMP but can be updated manually by pressing the Refresh Data button.

The TPO cluster information is retrieved from the TSS API. The TPO cluster needs to be linked to a zone monitored by Assure to be able to retrieve this information.

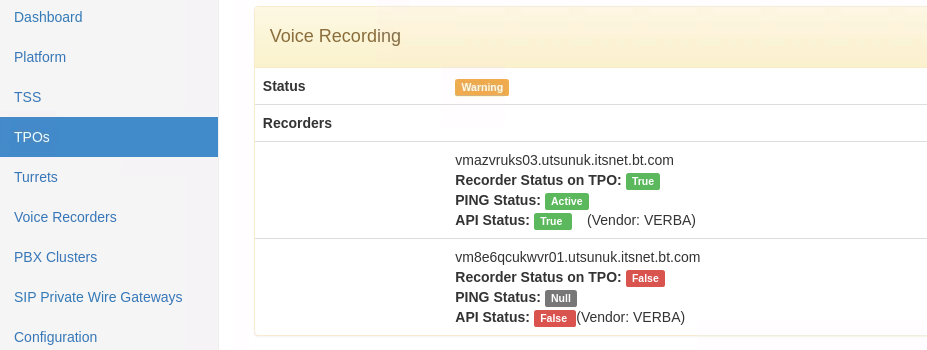

The Voice recording section shows the Voice recording server status if one is configured on the TPO.

The actual ping status between the recorder and TradeSense is now displayed as Ping Status in both Assure UI and WBA  get_health_api_report response.

The recorder status received from the device via SNMP is now displayed as Recorder Status on TPO, as applicable, in both Assure UI and get_health_api_report response.

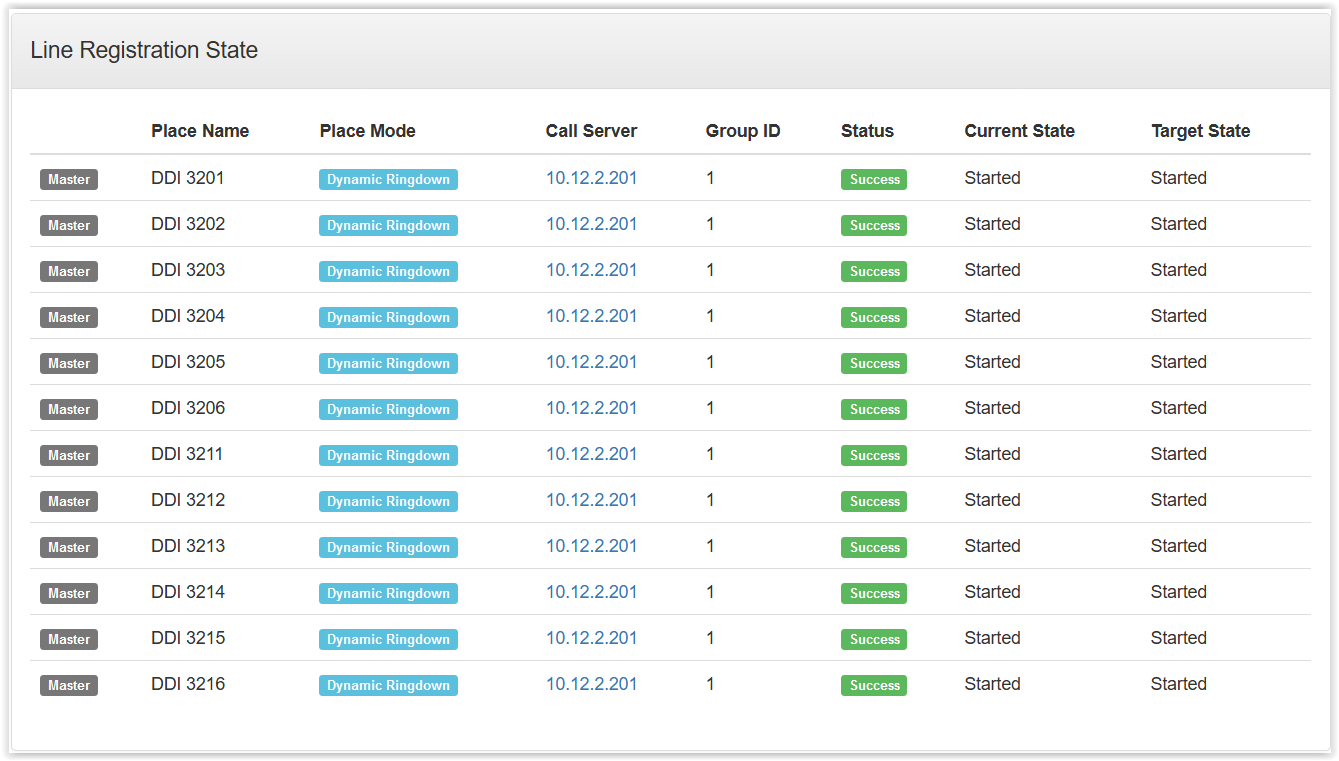

The Line Registration State section displays each TPO place configured on the TPO and its current state.

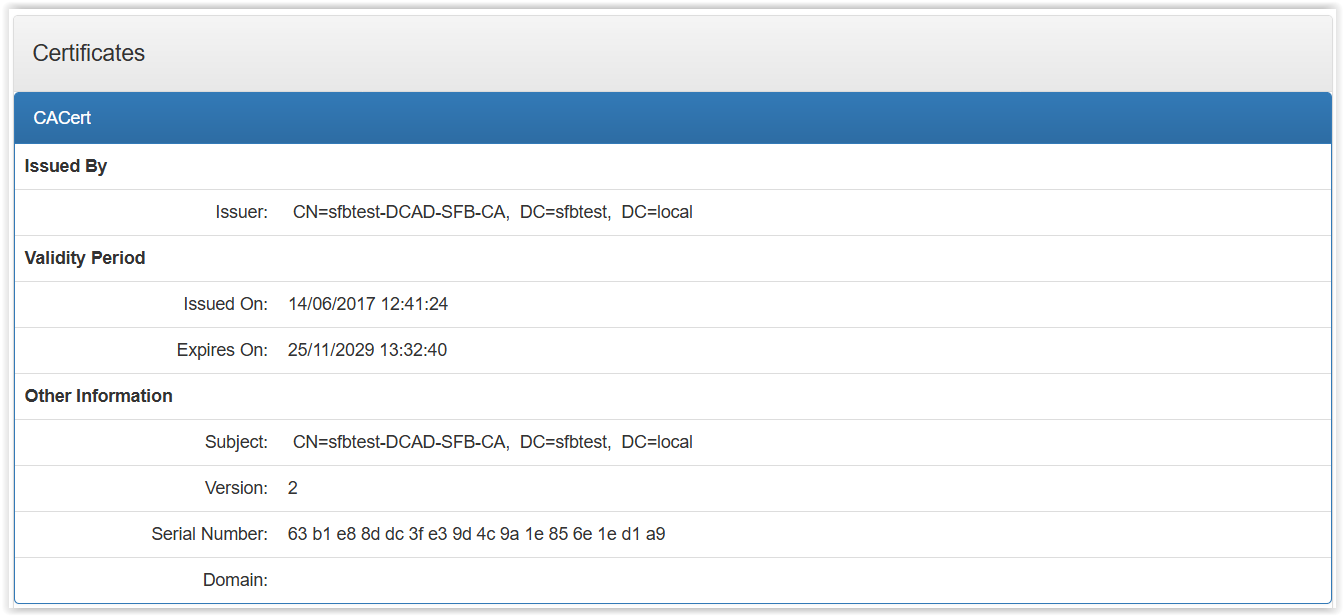

The Certificates section shows the CA and TPO certificates installed on the TPO if any.
