TPO Certificates

Valuable information about TPO Certificates can be find in different location in the Debug info zip file.

In SystemInformation.txt

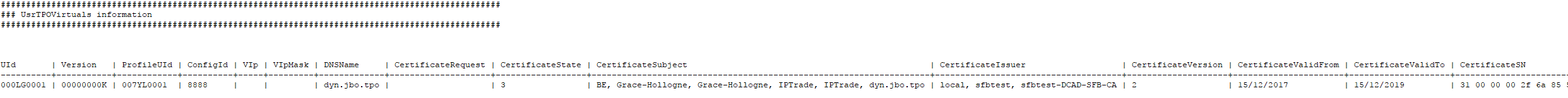

Some information about "TPO server certificates" are located in the SystemInformation.txt file, section "UsrTPOVirtuals information".

CertificateRequest	The certificate request string (only if the request has been generated, but the certificate hasn't been downloaded to the TSS yet)
CertificateState	Contains the state of the certificate for the domain name : 0 : NONE 1 : Request generated 2: Certificate downloaded to the TSS 3: Certificate installed on the TPO 4: Renewal request generated 5: Renewal certificate downloaded to the TSS
CertificateSubject	The subject of the certificate (the domain name in this case, along with other information)
CertificateIssuer	Information about the certificate issuer
CertificateValidFrom	Contains the start-of-validity date of the certificate
CertificateValidTo	Contains the end-of-validity date of the certificate

In the Certificates folder

You can also find useful information in certificates themselves. They are located in the "Certificates" folder of the Debug info zip file.

During a dump, certificates are copied to the Debug info zip file following the table below.

Installation folder		Debug info zip file
C:\Program Files\IPTrade\CACertificates	→	Certificates\CACertificates
C:\Program Files\IPTrade\Certificates	→	Certificates\Certificates
C:\Program Files\IPTrade\OLDServices	→	Certificates\OLDServices

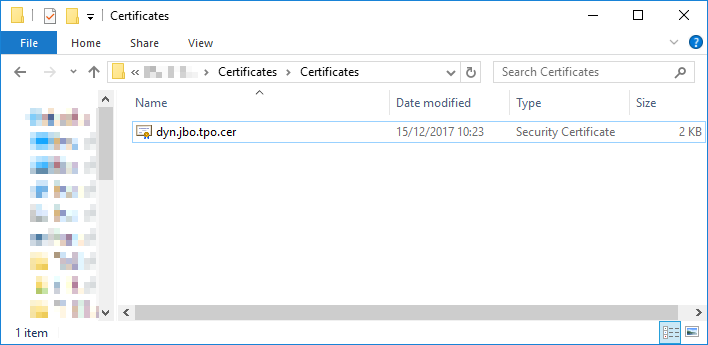

TPO certificates files can be find in the folder Certificates\Certificates of the Debug info zip file. This folder should contain a certificate named the same as the DNS name running on the TPO (if SIP over TLS is enabled between turrets and TPO).

This folder can contain multiple certificates as one TPO can run several TPO DNS names.

You can find all useful information about the certificate by double clicking on it.
