System Information

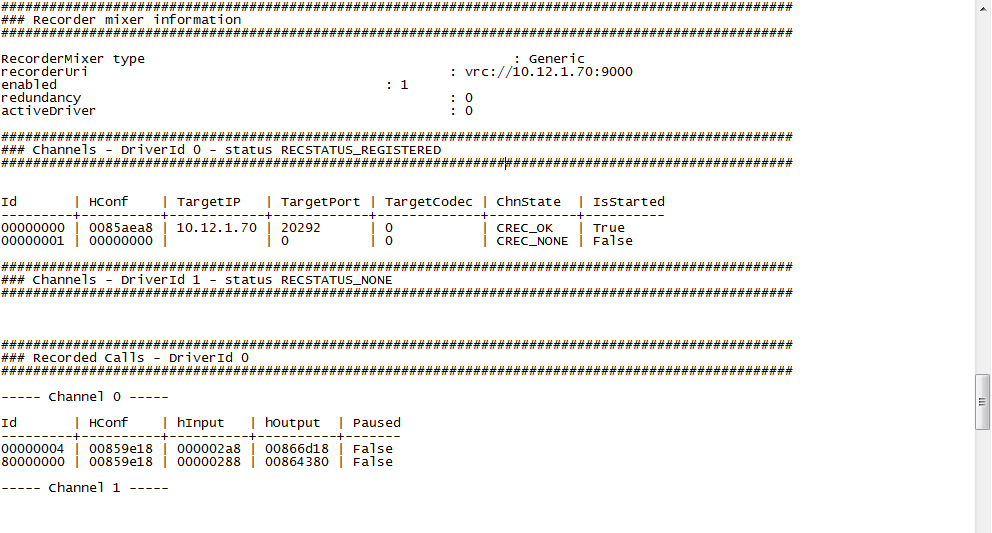

The following part of the file SystemInformation.txt contains the debug information:

•Section Recorder mixer information

RecorderMixer type	Type of mixer: Generic or NICE
RecorderUri	Uri of the recorder server in the format vrc://<IP:port>
enabled	0 = disabled 1 = enabled
redundancy	0 = disabled 1 = if there are 2 recorder Uris configured Example: vrc://10.12.1.70:9000;vrc://10.12.1.72:9000
activeDriver	In redundancy, it indicates which recorder server is the active one The value 0 indicates the first configured Uri The value 1 indicates the second configured Uri Example: vrc://10.12.1.70:9000;vrc://10.12.1.72:9000 0 representes vrc://10.12.1.70:9000 1 representes vrc://10.12.1.72:9000

•Recorder channels information

The section header gives the status of the recorder server : Channels - DriverId 0 - status RECSTATUS_REGISTERED

status

RECSTATUS_NONE means recorder feature is not configured

RECSTATUS_REGISTERED indicates the recorder server is ready to record

RECSTATUS_UNREGISTERED indicates the recorder server is not ready to record

The reason of this status is indicated in the TPO log; the causes can be:

•Recorder server is not reachable

•Recorder server closes the connection to TPO

•Keep alive is expired

The body of the section gives the status of the channels

Id	Channel Identifier
HConf	Conference handle value of the media service
TargetIP	IP address on which TPO should send the stream
TargetPort	IP port on which TPO should send the stream
TargetCodec	0 = PCMU 8 = PCMA
ChnState	State of the channel CREC_NONE = idle CREC_ALLOCINPROGRESS = A pending request is sent to the recorder server to get TargetIP and TargetPort CREC_OK= TargetIP and TargetPort are OK CREC_PAUSE= Stream is paused CREC_UNDEFINED= undefined
IsStarted	True = output stream is started False = output stream is stopped

•Recorded calls information

Id	Call Identifier
HConf	Conference handle value of the media service
hInput	Input stream handle value of the media service
hOutput	Output stream handle value of the media service
Paused	Indicates if recorded call should be paused
