The media service information file contains the debug information of all managed streams.
•The conference is a logical entity which groups input and output streams
•Input stream is a listening RTP access point on the local network interface (TPO point of view)
•Output stream is a RTP stream emitted from TPO to a target IP

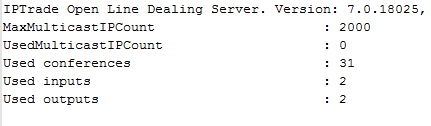

General counters information:
- MaxMulticastIPCount: maximum number of multicast IP input stream
- UsedMulticastIPCount: number of used Multicast IP input stream
- Used conferences: number of used conferences
- Used inputs: number of used input streams
- Used outputs: Number of used output streams
|
|
|
This section describes the input and output streams data of a conference
Conference Handle
|
Handle value of the conference
|
1.Input streams
hIStream
|
Handle value of input stream
|
sSrc
|
SSRC of the RTP stream
|
localPort
|
Local RTP port
|
remoteIP
|
Remote IP address
|
remotePort
|
Remote IP port
|
isPassive
|
Multicast only: indicates if the input stream is child stream of a parent input stream
|
isMulticastActive
|
Multicast only: 1 if no passive
|
Started
|
indicates if the input stream should be handle by the mixing engine (1=yes, 0=no)
|
linkedConfs
|
list of linked conferences hout=X hconf=Y
X = output stream handle
Y= conference handle
|
2.Input streams parent
When several multicast IP streams from different sources are handled by the same IP/port on TPO, the first multicast IP source is tagged as parent stream.
3.Output streams
hOStream
|
Handle value of output stream
|
LocalIP
|
Local RTP IP address
|
localPort
|
Local RTP port
|
remoteIP
|
Remote IP address
|
remotePort
|
Remote IP port
|
Started
|
1 = Stream is sent to the remote target
0 = Stream is paused and not sent to the remote target
|
Muted
|
Silent is sent to the remote target
|
isMulticast
|
1 = the stream is a multicast stream
0 = the stream is not a multicast stream
|
listInputs
|
list of linked input streams
hIn = input stream handle
muted = 0 indicates this input stream is taken account into the mixed output stream
muted = 1 indicates this input stream is not taken account into the mixed output stream
|
|
