Subscription information

Standard > Troubleshooting Data: References > TPO > TPO Debug Information > CCL File > Line information

This section gives internal SIP subscription objects information

Incoming subscription (TPO point of view)

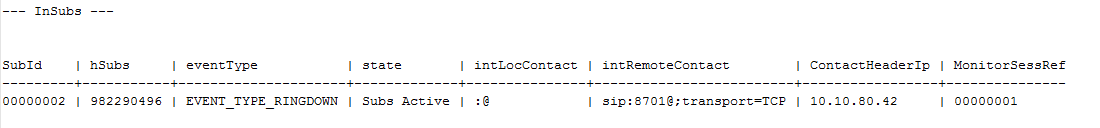

TPO-CCL_subIn

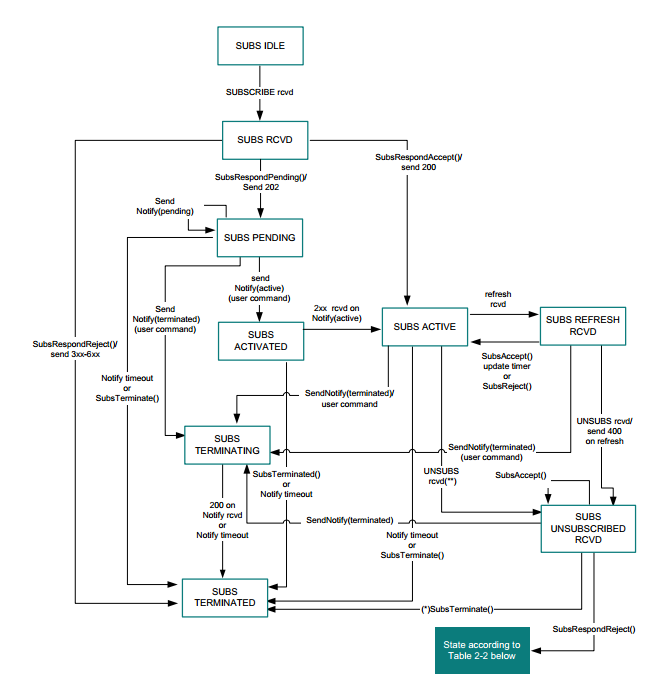

state machine:

TPO-CCL_subIn_statemachine

Here is the most valuable information.

SubId	Subscription ID
hSubs	SIP stack ID of the subscription
eventType	EVENT_TYPE_RINGDOWN: DDI line subscription of the turret
state	see state machine
initRemoteContact	Identity of the subcriber
ContactHeaderIp	IP address of the turret

Outgoing subscription (TPO point of view)

TPO-CCL_subOut

state machine

TPO-CCL_subOut_statemachine

Here is the most valuable information.

SubId	Subscription ID
hSubs	SIP stack ID of the subscription
eventType	EVENT_TYPE_TALK: it allows the turret to control the talking (Public, Private, Idle) EVENT_TYPE_MSGDIALOG: it allows TPO to receive the notification of call state from a Cisco shared line (no bulk registration) EVENT_TYPE_MSGWAITING: it allows TPO to receive the MWI (Message Waiting Indicator)
state	see state machine
