Calls information

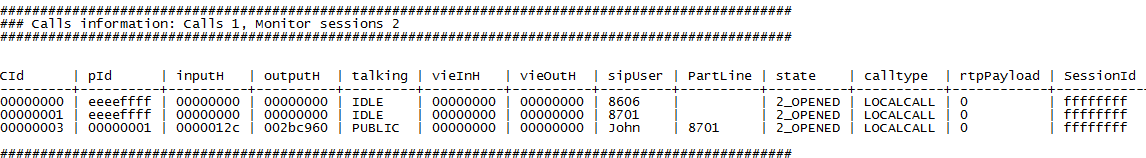

Calls information gives information about calls established between the turret and TPO. The very interesting value to extract from both section is the Cid, this value will be very useful in the CCL.txt file.

CId	Call id this value can be also found in different syslogs
pId	The associated place ID
inputH	The Input stream ID of the media service information (OLDCBdump.txt)
outputH	The Output stream ID of the media service information
talking	Talkingmode:IDLE,PUBLIC,PRIVATE,PRIVATE_CONF,PRIVATE_CONF_OWNER
vieInH	The video input stream ID of the media service information
vieOutH	The video output stream ID of the media service information
sipUser	Identity of the remote party
state	This reflects the call state in the internal state machine. Here is an extract of the most usual values: 1_IOPENING: an incoming call 1_OPREPARING: preparing an outgoing call (the sip request is not sent yet) 1_OOPENING: opening an outgoing call (sip request sent) 1_ORINGING: outgoing call launched, the remote party is ringing 1_INERROR: error on call 2_OPENED: call is established 2_HOLDING: call is currently put on hold (sip re-invite on progress) 2_HELD: call is on hold 2_RESUMING: call is currently resumed (sip re-invite on progress) 2_TRANSFERING: call is currently on transfer. It could only be occurred when using packing place. 2_BTRANSFERING: call is currently on blind transfer. It could only be occurred on a mobile trader. 3_ITOPENING: an Intercom incoming call 3_ITOPENED: Intercom call is established 3_ITOOPENING: opening an Intercom outgoing call
regId	ID of DDI slot.
sipcallId	SIP call ID. It can be used to find the call in a network trace.
