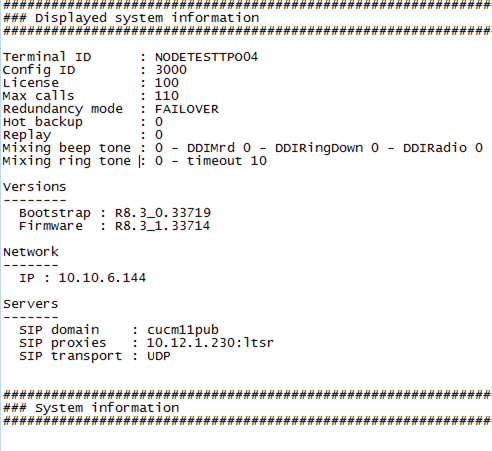

Displayed system information:
- Terminal ID allow to identify the TPO debug has been taken from.
- Config ID is the running TPO Group ID
- License is the number of license received for Max Calls.
- Max calls represents the maximum calls authorized by the TPO depending of the license (if this value is very low it may explain some basic problem like “I can make a first join but I cannot make a second one in parallel”)
- Redundancy mode represents the mode of redundancy
- Hot backup is enabled when redundancy mode is VIRTUAL IP or DNS or CuCM Session Persistency
- Replay indicates if Instant replay feature is enabled
- Mixing beep tone indicates if recording beep tone is generated for MRD, ARD or Radio DDI slot
- Mixing ring tone: futur usage
Versions:
Bootstrap, firmware
Network:
This section provides network configuration data such as MAC or IP Address.
Servers:
Provides data about third party servers configuration and version (IP Soft PBX)
System information:
System information gives the current OS image used by the TPO (OVA only.
|
