SystemInformation.txt

System information:

•Version shows LineTracker.dll version

•Date time shows system date time

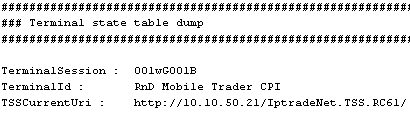

Terminal state table dump:

•TerminalSession is the unique ID obtained from the TSS at terminal registration time

•TemrinalId is the value given by administrator at installation time

•TSSCurrentUri is the uri of the TSS mobile trader is authenticated against

Profiles associated to users:

List all authenticated User Ids and their shared profiles

Users associated to profiles

List all loaded shared profile Ids and the associated users

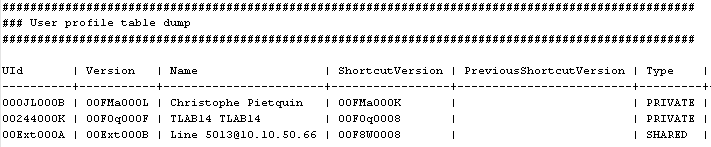

User profile table dump

•UId is the profile UID as defined in the TSS

•Name is the name of the profile

•Type shows if profile is PRIVATE or SHARED

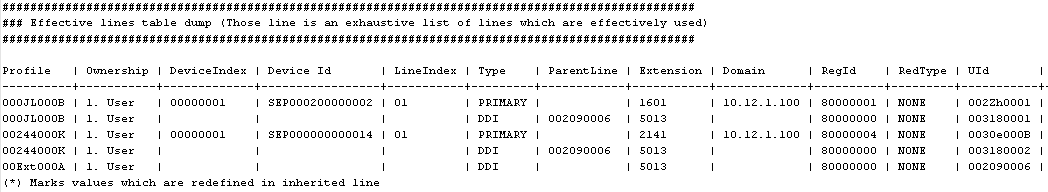

Effective lines table dump

•RegId: Ref as defined in DDI and mobile trader register list in CCL.txt

•Profile: when private, the line may be real or redefined from parent, when shared the line is a parent line. Please note that under this field, you will retrieve the UId of the corresponding user profile table dump and thus which lines belong to which user.

•ParentLine: Not blank means the line is inherited, corresponding parent line can be found searching the same value in UId column

•DefaultDDI and DefaultLine impact the source line used to open virtual audio slot sessions. They also impact automatically allocated DDI outbound call.

•TpoGroupName shows the TPO line refers to. In primary line, it shows the TPO chosen by mobile trader as the most valuable TPO for the corresponding user.

User settings dump contains settings defined in each profile

Config dump contains settings defined in application.cfg  + mobile trader settings
