Solution Installation > Turret/Console Installation > Device Wizard installation

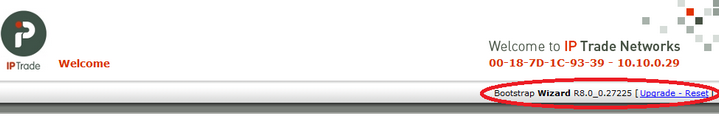

To upgrade bootstrap, click on Upgrade - Reset link next to bootstrap version on right-top of page.



wizard-bootstrapUpgradeButton

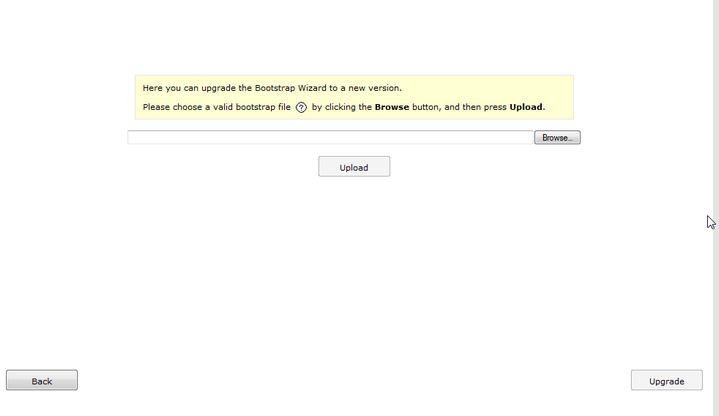

By upgrading the boostrap, administrator will also potentially upgrade the wizard.



wizard-screenShotUPGradebootstrap00

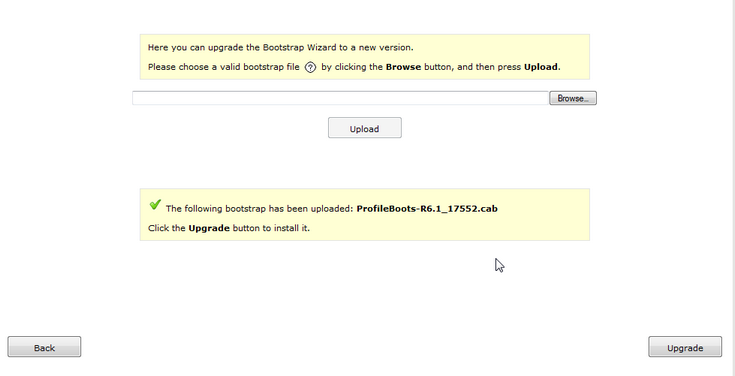

Click on "browse" and select a bootstrap firmware, then click on upload.



wizard-screenShotUPGradebootstrap01

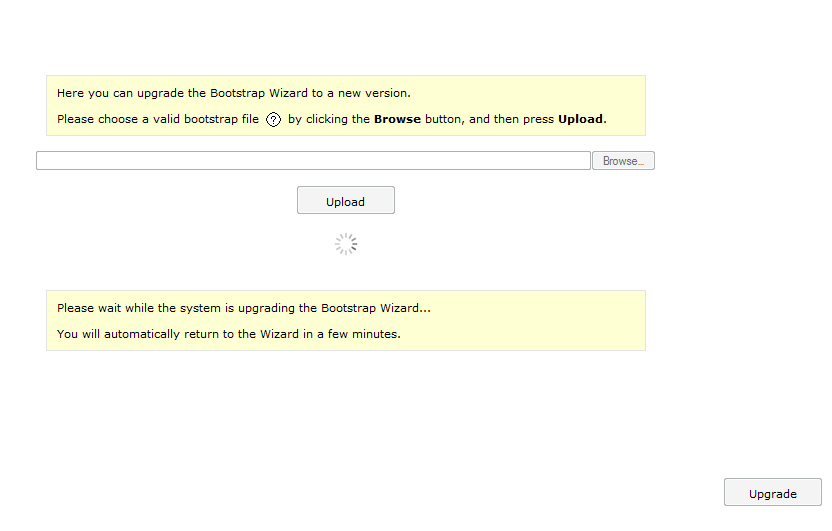

After clicking on "upgrade", the browser will display the following information.

wizard-screenShotUPGradebootstrap02

Once upgraded, the normal administration console will be displayed..
