Network

Solution Installation > Netrix Installation > Troubleshooting > Web Diagnostics

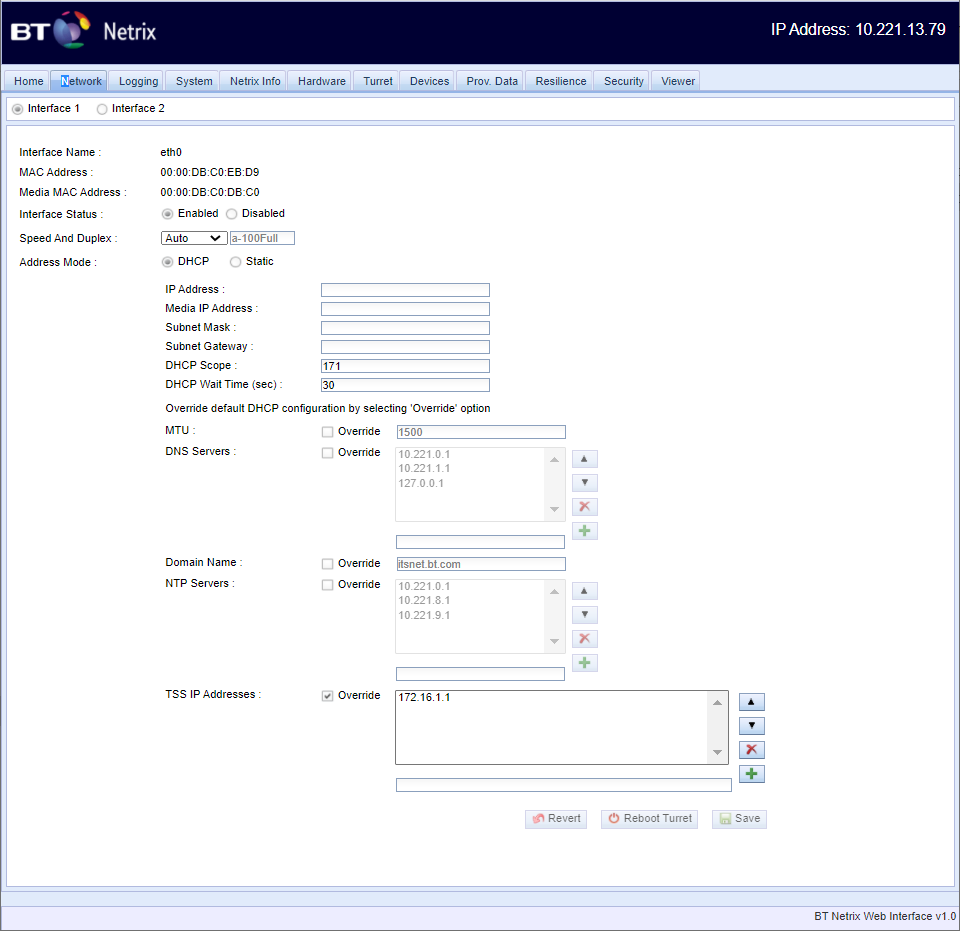

Allows the site engineer to configure the network interfaces.

Netrix-Web-Network

Netrix has 2 network interfaces which

•support up to 100Mbps full duplex.

•can either be used with a single network connection, or in NIC-teaming mode where both are connected for resilience but only one is used at any one time.

•are normally configured for DHCP and use scope option 171 to obtain the address of the TSS server, but also support static addressing.

•allow the MTU, DNS/NTP Servers and the address of the TSS to be manually overridden.


		If the network configuration is changed the turret must be rebooted for the configuration to take affect.
