Configure

Configuration level

The screensaver can be configured at device (boot settings) or user (profile settings) level.

Location: Terminal Profile Settings, Terminal Boot Settings

User Settings

Screen saver delay
Key: profile.setting.screensaver.delay Description: Defines the delay before an inactive turret switches to screen saver mode, i.e. displays a moving image on screen or dims the screen. A turret is inactive when there is no user input and no bidirectional call is active. Note: If this key is defined in a user's profile, it will not be active when the user is not logged in (login screen). Constraint: Numerical value, in seconds 0 means inactive Related settings: Screen saver mode (profile.setting.screensaver.mode)

•Go to the device, or its zone (Turret tab)

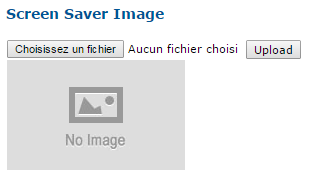

•Localize "Screen saver image"

upload_image

•Select your image then click Upload

Location: Terminal Profile Settings, Terminal Boot Settings

User Settings

Screen saver mode
Key: profile.setting.screensaver.mode Description: Defines if the screensaver should display an image dim the screen. There are two modes for the screensaver: - Simply dimming the screen; - Display a configured image on a black background. Every 10 seconds, the image faded out and faded-in at a random position on the screen. Note: If this key is defined in a user's profile, it will not be active when the user is not logged in (login screen). Constraint: image\|dimming Related settings: Screen brightness level when dimmed (profile.setting.screen.brightness.dimmed) Screen activity - VAD (profile.setting.screen.activity.vad) Screen saver delay (profile.setting.screensaver.delay) Screensaver line type (profile.setting.screensaver.linetype) Screensaver lines list (profile.setting.screensaver.lines)

Location: Terminal Boot Settings, Terminal Profile Settings

Session

Screen brightness level when dimmed
Key: profile.setting.screen.brightness.dimmed Description: Defines the brightness level to apply when dimming the screen, after a specified period of inactivity. Constraint: Numerical value, from 0 to 128. 128 is full brightness; 0 is nearly black. Related settings: Screen activity - incoming call (profile.setting.screen.activity.incoming) Screen activity - distant incoming call (profile.setting.screen.activity.distantincoming) Screen activity - VAD (profile.setting.screen.activity.vad) Custom brightness levels (profile.setting.brightness.customvalues) Screen saver mode (profile.setting.screensaver.mode)

Location: Terminal Boot Settings, Terminal Profile Settings

Session

Screen activity - incoming call	truefalse
Key: profile.setting.screen.activity.incoming Description: Defines if an incoming call is considered as activity, avoiding the session to lock or the screen to dim. Constraint: true\|false Related settings: Session time out unit (application.global.timeout.unit) Session time out duration (application.global.timeout.session) Screen brightness level when dimmed (profile.setting.screen.brightness.dimmed) Screen activity - distant incoming call (profile.setting.screen.activity.distantincoming) Screen activity - VAD (profile.setting.screen.activity.vad)

Location: Terminal Boot Settings, Terminal Profile Settings

Session

Screen activity - distant incoming call	truefalse
Key: profile.setting.screen.activity.distantincoming Description: Defines if a distant incoming call (on another turret) is considered as activity, avoiding the session to lock or the screen to dim. Constraint: true\|false Related settings: Session time out unit (application.global.timeout.unit) Session time out duration (application.global.timeout.session) Screen brightness level when dimmed (profile.setting.screen.brightness.dimmed) Screen activity - incoming call (profile.setting.screen.activity.incoming) Screen activity - VAD (profile.setting.screen.activity.vad)

Location: Terminal Boot Settings, Terminal Profile Settings

Session

Screen activity - VAD	truefalse
Key: profile.setting.screen.activity.vad Description: Defines if a Voice Activity Detection event is considered as activity, avoiding the session to lock or the screen to dim. Constraint: true\|false Related settings: Session time out unit (application.global.timeout.unit) Session time out duration (application.global.timeout.session) Screen brightness level when dimmed (profile.setting.screen.brightness.dimmed) Screen activity - incoming call (profile.setting.screen.activity.incoming) Screen activity - distant incoming call (profile.setting.screen.activity.distantincoming) Screen saver mode (profile.setting.screensaver.mode)

Location: Terminal Profile Settings, Terminal Boot Settings, Terminal Boot Settings, Terminal Profile Settings

User Settings

Screensaver lines list
Key: profile.setting.screensaver.lines Description: Defines which lines the Screensaver filters. Only call log entries related to these lines are displayed. Constraint: The list of line extensions, comma-separated. Examples: 1000,1001 Related settings: Screen saver mode (profile.setting.screensaver.mode) Call History applet lines list (profile.setting.applet.history.x.lines)

Location: Terminal Profile Settings, Terminal Boot Settings, Terminal Boot Settings, Terminal Profile Settings

User Settings

Screensaver line type
Key: profile.setting.screensaver.linetype Description: Defines which types of lines are filtered when displaying call logs in the screensaver Constraint: Line types separated by ','. Line types are : - voip - radio - intercom By default, all line types are defined. An empty value allows disabling the display of call log entries. Related settings: Screen saver mode (profile.setting.screensaver.mode) Call History applet line type (profile.setting.applet.history.x.linetype)
