Audio Devices naming

A naming system is used for the different audio devices of the turret. Here is the presentation of the names used for the audio features.

Devices

Handset:

•Left handset = HS1

•Right handset = HS2

Loudspeaker:

These devices are used for the calls on monitor applet or moved to loudspeaker either the microphone is enabled or not.

•Applet 1 and Applet 3 speaker = LD1

•Applet 2, Applet 4, Applet 7 and Applet 8 speaker = LD2

Hand-free:

These devices are used for the calls on monitor applet or moved to loudspeaker only when the microphone is enabled/opened.

•Applet 1 and Applet 3 speaker = HF1

•Applet 2, Applet 4, Applet 7 and Applet 8 speaker = HF2

Intercom:

This device is used when an intercom call is established on a turret without any Intercom applet.

•Intercom default device = LDI1

These devices are used for the intercom calls on a monitor applet

•Intercom on Applet 1 and Applet 3 speaker = LDI1

•Intercom on Applet 2, Applet 4, Applet 7 and Applet 8 = LDI2

Headset:

•Headset connected to the turret : HD

Example

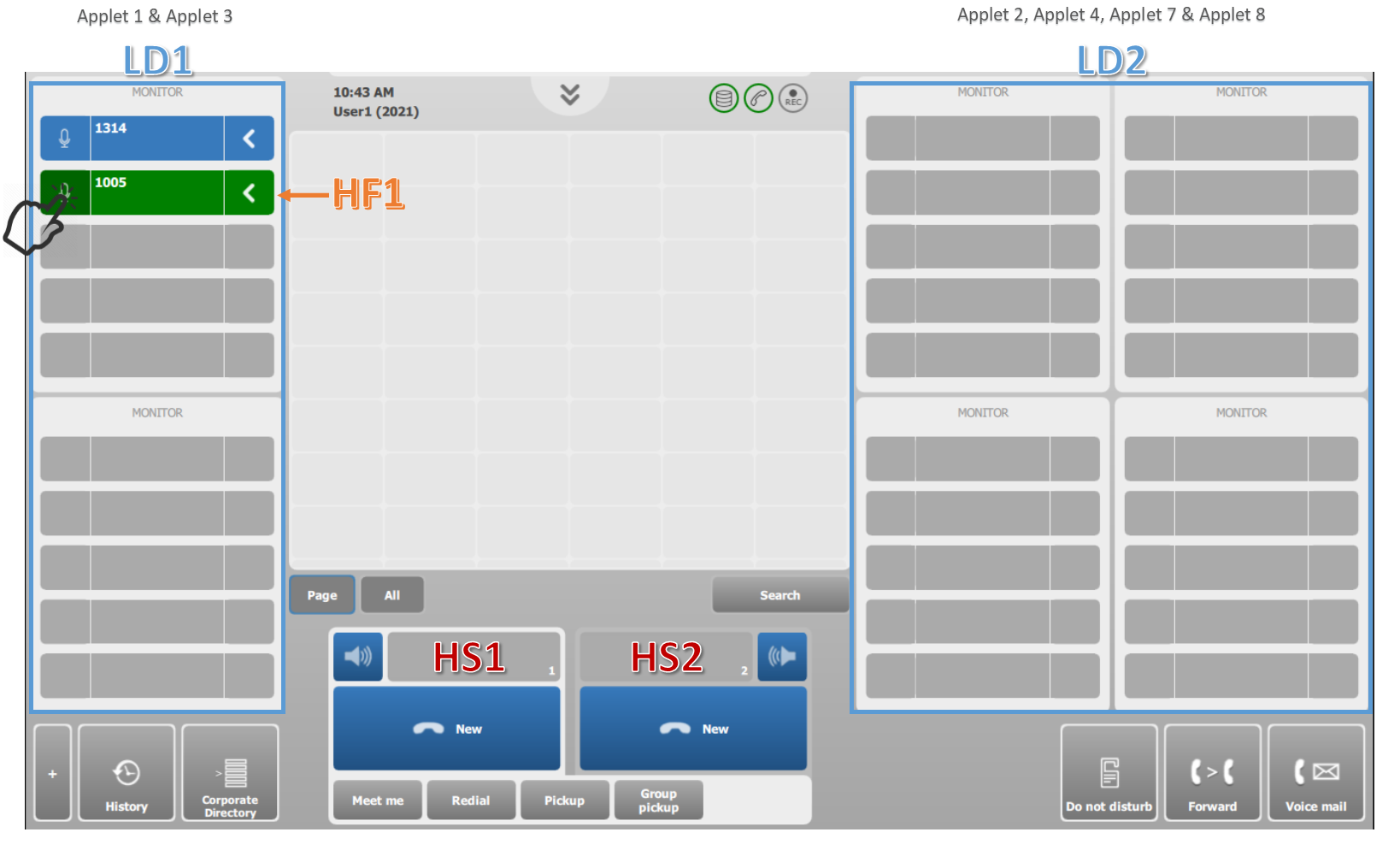

Handset, loudspeaker and hand-free naming :

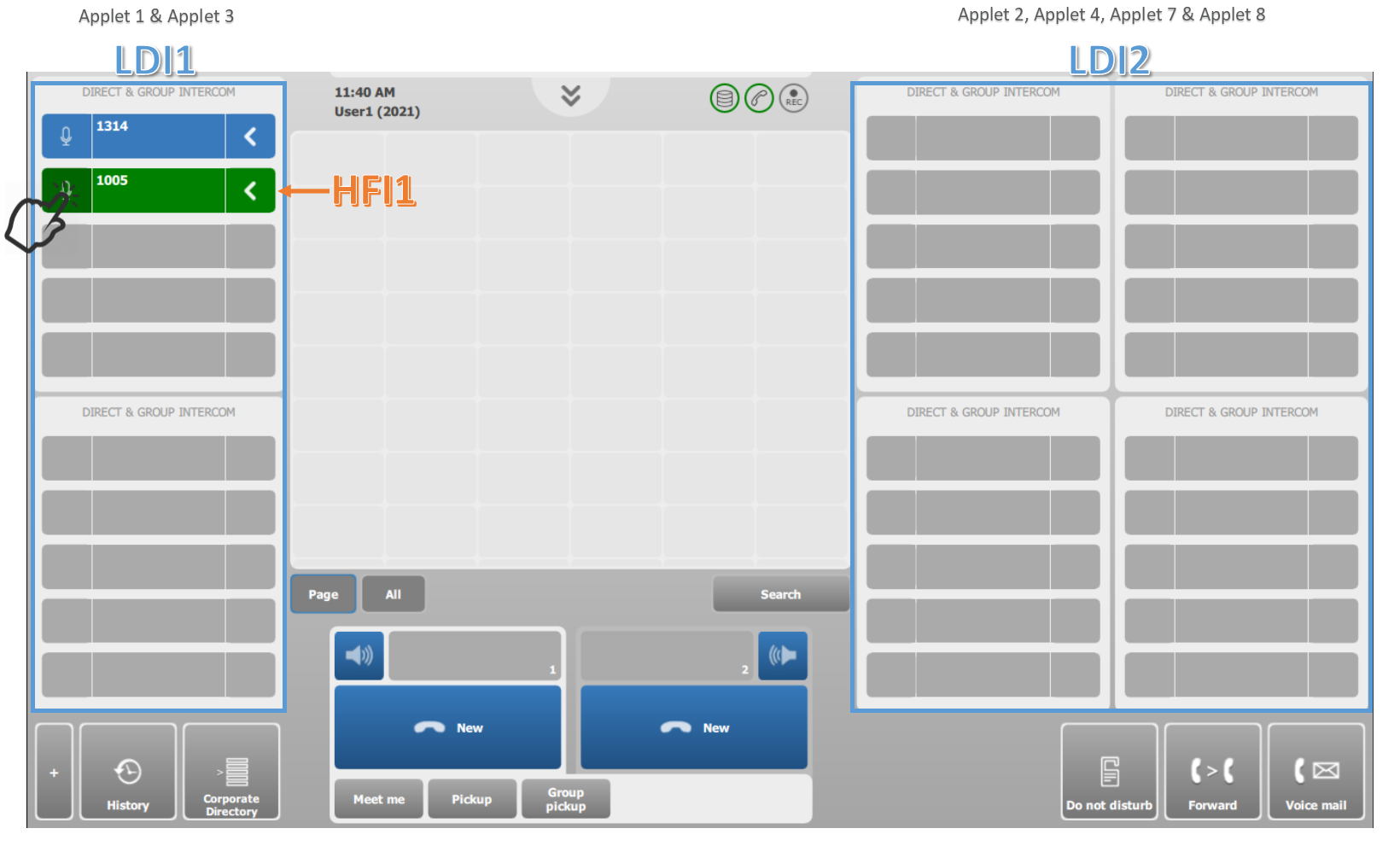

Intercom applet naming:
