This section gives internal registration objects information

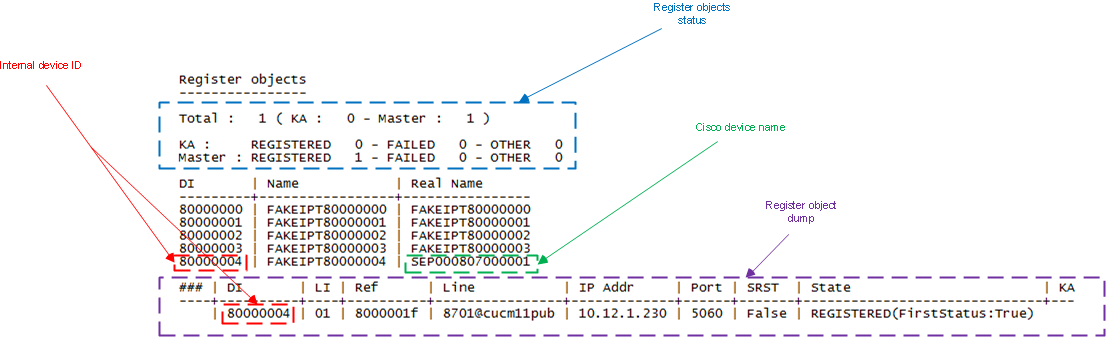

TPO-CCL_registration





The register object status shows a quick view of the current registration state:

•KA is keep-alive register object

•Master is the main register object





Here is the most valuable information of the register dump object



DI

Device ID

LI

Line index

Ref

Registration reference ID: this ID is the line's ID

Line

URI of the registered line

IP Addr

IP address of the SIP register server (it's usually the PBX IP address)

Port

Port of the SIP register server

SRST

Cisco Survivable Remote Site Telephony

State

State of the line: IDLE, TERMINATED, REGISTERING, REDIRECTED,  UNAUTHENTICATED, REGISTERED, FAILED, MSG_SEND_FAILURE, UNKNOWN

KA

Keep Alive line
